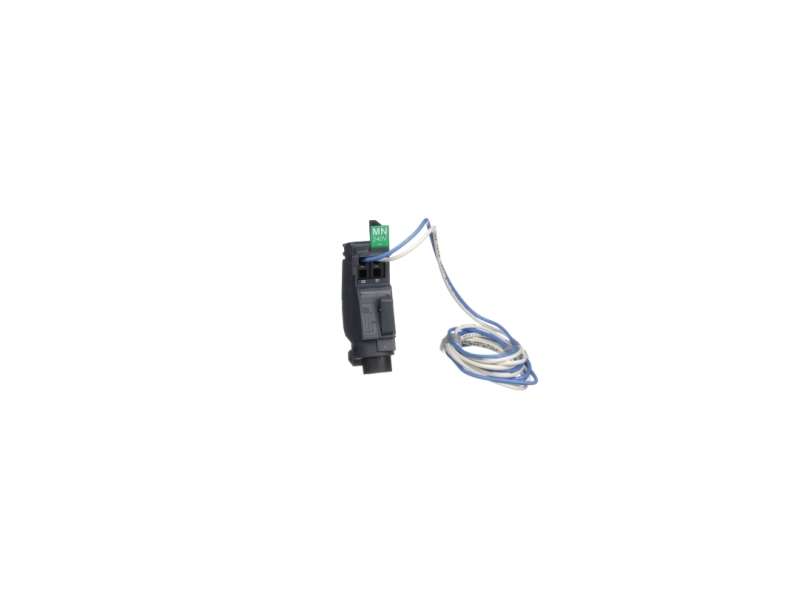

Schneider Electric Prethodno ožičeni MN podnaponski okidač, Compact NSXm, nazivni napon 220/240 VAC 50 Hz, 208/240 VAC 60Hz;LV426824

Pre-wired undervoltage release MN, ComPacT NSXm, 220/240VAC 50Hz, 208/240VAC 60Hz...

Brand: Schneider Electric
Product Code: LV426824
Availability: Check availability

VAT-exclusive price: 13.692,00

VAT-inclusive price: 16.430,40

Qnt:

Description
Specification

Pre-wired undervoltage release MN, ComPacT NSXm, 220/240VAC 50Hz, 208/240VAC 60Hz

Main
range	ComPact
device short name	MN
product or component type	Voltage release
device application	Control
range compatibility	ComPacT NSXm new generation ComPact NSXm PowerPact B
voltage release type	Opening coil Undervoltage release
[Uc] control circuit voltage	220...240 V AC 50 Hz 208...240 V AC 60 Hz

Complementary
Operating threshold	0.35...0.7 x Un opening 0.85 x Un closing
response time	< 50 ms
auxiliary connection terminal	Pre-wired 0…0.8 mm² (AWG 18)stranded copper
wire stripping length	8 mm
Cable length	1 m

Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Weight	83.0 g
Package 1 Height	3.5 cm
Package 1 width	6.0 cm
Package 1 Length	8.5 cm
Unit Type of Package 2	BB1
Number of Units in Package 2	10
Package 2 Weight	880.0 g
Package 2 Height	9.0 cm
Package 2 width	13.0 cm
Package 2 Length	18.5 cm
Unit Type of Package 3	S03
Number of Units in Package 3	120
Package 3 Weight	10.9 kg
Package 3 Height	30.0 cm
Package 3 width	30.0 cm
Package 3 Length	40.0 cm
