Schneider Electric Rastavljač Compact INS250 - 250 A - 3P;31106

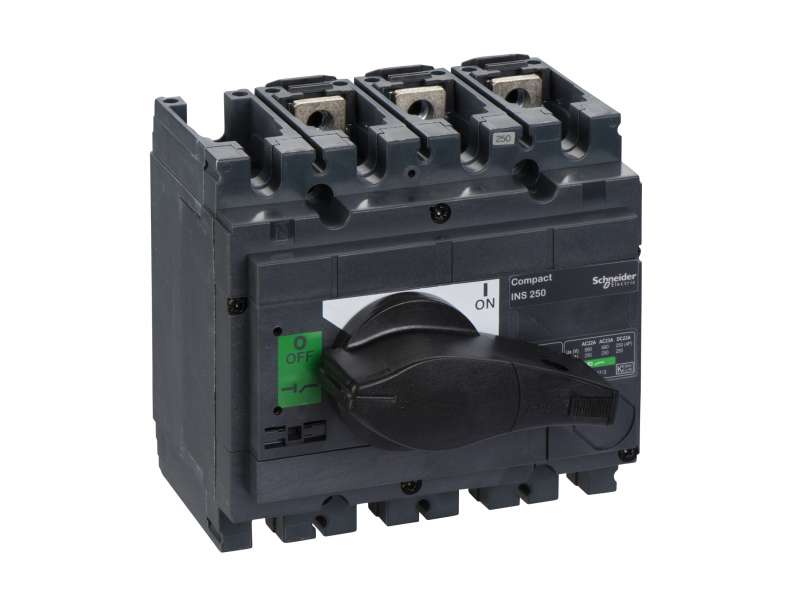

Switch disconnector, Compact INS250 , 250 A, standard version with black rotary handle, 3 poles...
VAT-exclusive price: 21.568,00 |
VAT-inclusive price: 25.881,60 |
Switch disconnector, Compact INS250 , 250 A, standard version with black rotary handle, 3 poles
| range |
ComPact
|
|
|---|---|---|
| product or component type |
Switch disconnector
|
|
| product name |
Compact INS
|
|
| poles description |
3P
|
|
| network type |
DC
AC |
|
| network frequency |
50/60 Hz
|
|
| [Ie] rated operational current |
AC-22A: 250 A AC 50/60 Hz 220/240 V
AC-22A: 250 A AC 50/60 Hz 380/415 V AC-22A: 250 A AC 50/60 Hz 440/480 V AC-22A: 250 A AC 50/60 Hz 480 V NEMA AC-22A: 250 A AC 50/60 Hz 500/525 V AC-22A: 250 A AC 50/60 Hz 660/690 V AC-23A: 250 A AC 50/60 Hz 220/240 V AC-23A: 250 A AC 50/60 Hz 380/415 V AC-23A: 250 A AC 50/60 Hz 440/480 V AC-23A: 250 A AC 50/60 Hz 480 V NEMA AC-23A: 250 A AC 50/60 Hz 500/525 V AC-23A: 250 A AC 50/60 Hz 660/690 V DC-22A: 250 A DC 125 V 2 poles in series DC-23A: 250 A DC 125 V 2 poles in series |
|
| [Ui] rated insulation voltage |
750 V AC 50/60 Hz
|
|
| [Ith] conventional free air thermal current |
250 A at 60 °C
|
|
| [Icm] rated short-circuit making capacity |
30 kA switch-disconnector alone 690 V AC at 50/60 Hz
330 kA with upstream protection circuit breaker 690 V AC at 50/60 Hz |
|
| [Ue] rated operational voltage |
125 V DC
690 V AC 50/60 Hz |
|
| suitability for isolation |
Yes
|
|
| contact position indicator |
Yes
|
|
| visible break |
No
|
|
| pollution degree |
3
|
| control type |
Direct front rotary handle
|
|
|---|---|---|
| handle colour |
Black
|
|
| mounting mode |
Fixed
|
|
| mounting support |
Rail
Plate |
|
| upside connection |
Front
|
|
| downside connection |
Front
|
|
| maximum power |
AC-23: 132 kW at 380/415 V AC 50/60 Hz
AC-23: 150 kW at 440 V AC 50/60 Hz AC-23: 150 kW at 480 V AC 50/60 Hz (NEMA) AC-23: 160 kW at 500/525 V AC 50/60 Hz AC-23: 210 kW at 660/690 V AC 50/60 Hz AC-23: 75 kW at 220/240 V AC 50/60 Hz AC-23: 75 kW at 230 V AC 50/60 Hz (NEMA) |
|
| rated duty |
Uninterrupted
|
|
| [Icw] rated short-time withstand current |
1.8 kA during 30 s conforming to IEC 60947-3
2.2 kA during 20 s conforming to IEC 60947-3 4.9 kA during 3 s conforming to IEC 60947-3 8.5 kA during 1 s conforming to IEC 60947-3 |
|
| mechanical durability |
15000 cycles
|
|
| electrical durability |
AC-22A: 1500 cycles 440 V AC 50/60 Hz
AC-22A: 1500 cycles 500 V AC 50/60 Hz AC-22A: 1500 cycles 690 V AC 50/60 Hz AC-23A: 1500 cycles 440 V AC 50/60 Hz AC-23A: 1500 cycles 500 V AC 50/60 Hz AC-23A: 1500 cycles 690 V AC 50/60 Hz DC-22A: 1500 cycles 125 V DC 2 poles in series DC-23A: 1500 cycles 125 V DC 2 poles in series |
|
| connection pitch |
35 mm
|
|
| height |
136 mm
|
|
| width |
140 mm
|
|
| depth |
96 mm
|
|
| net weight |
2 kg
|
| standards |
IEC 60947-3
IEC 60947-1 |
|
|---|---|---|
| product certifications |
KEMA-KEUR
CCC |
|
| IP degree of protection |
IP40 conforming to IEC 60529
|
|
| IK degree of protection |
IK07 conforming to EN 50102
|
|
| ambient air temperature for operation |
-25…70 °C
|
|
| ambient air temperature for storage |
-50…85 °C
|
| Unit Type of Package 1 |
PCE
|
|
|---|---|---|
| Number of Units in Package 1 |
1
|
|
| Package 1 Weight |
2.242 kg
|
|
| Package 1 Height |
13.8 cm
|
|
| Package 1 width |
16.2 cm
|
-
Compact INS INV 31106
