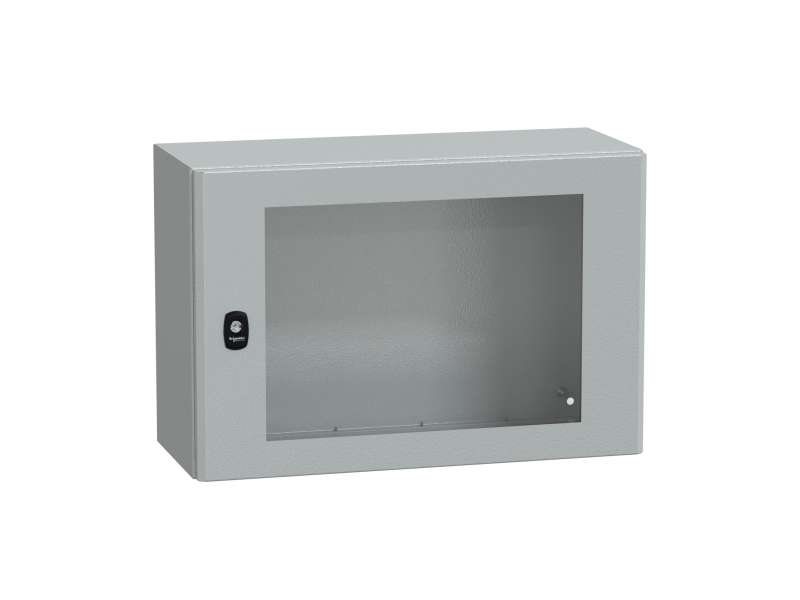

Schneider Electric Spacial S3D prozirna vrata, bez MP V400xŠ600xD250 IP66 IK08 RAL7035.
Spacial S3D tspt door w/o mount.plate. H400xW600xD250 IP66 IK08 RAL7035....
VAT-exclusive price: 27.230,00 |
VAT-inclusive price: 32.676,00 |
Spacial S3D tspt door w/o mount.plate. H400xW600xD250 IP66 IK08 RAL7035.
| range | Spacial |
|---|---|
| product name | Spacial S3D |
| Application | Multi-purpose |
| Category | Compact enclosure |
| enclosure nominal height | 400 mm |
| enclosure nominal width | 600 mm |
| enclosure nominal depth | 250 mm |
| door type | Glazed |
| mounting plate description | Without mounting plate |
| type of gland plate | Standard |
| installation accessory type | Wall-mounting |
| device composition |
1 body 1 door 1 lock 1 cable gland plate |
| body type |
Single piece body Gutter-shaped front rail double sheet thickness |
|---|---|
| number of doors | Front face: 1 door(s) |
| door opening side | Reversible (120 °) |
| lock type | 3 points lock, 3 mm double-bar |
| accessibility for operation | Front |
| removable parts |
Door by hinges Cable gland plate by screws |
| material |
Body: steel Door: steel and security glass |
| surface finish | Epoxy-polyester powder |
| colour | Grey (RAL 7035) |
| Standards | IEC 62208 |
| Product certifications |
UL LR GL BV CUL DNV |
| Net weight | 11.82 kg |
| electromagnetic compatibility | Electromagnetic field immunity test |
|---|---|
| IK degree of protection | IK08 conforming to IEC 62262 |
| IP degree of protection | IP66 conforming to IEC 60529 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 11.82 kg |
| Package 1 Height | 41.8 cm |
| Package 1 width | 61.3 cm |
| Package 1 Length | 29.8 cm |
| Sustainable offer status | Green Premium product |
|---|---|
| REACh Regulation | REACh Declaration |
| REACh free of SVHC | Yes |
| EU RoHS Directive |
Pro-active compliance (Product out of EU RoHS legal scope)
EU RoHS Declaration |
| Mercury free | Yes |
| RoHS exemption information | Yes |
| China RoHS Regulation |
China RoHS declaration
Product out of China RoHS scope. Substance declaration for your information
|
| Environmental Disclosure | Product Environmental Profile |
| California proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Warranty | 18 months |
|---|
-
Spacial S3D NSYS3D4625T
