Schneider Electric Spacial S3DEX (ATEX sertifikovano) V600xŠ600xD250 .IP66 IK10 RAL7035.
Spacial S3DEX (ATEX certified) H600xW600xD250 .IP66 IK10 RAL7035....
VAT-exclusive price: 45.884,00 |
VAT-inclusive price: 55.060,80 |

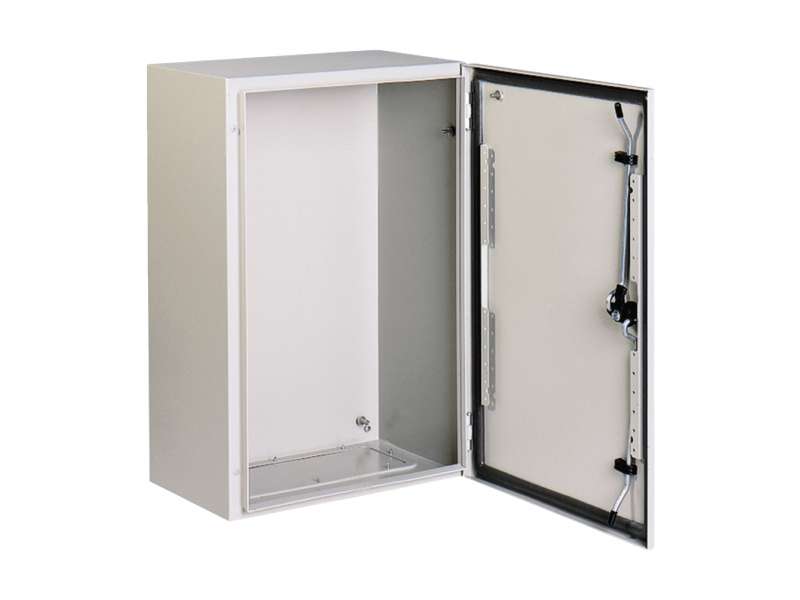

Spacial S3DEX (ATEX certified) H600xW600xD250 .IP66 IK10 RAL7035.
| range | Spacial |
|---|---|
| product name | Spacial S3DEX |
| Application | ATEX certified application |
| Category | Compact enclosure |
| enclosure nominal height | 600 mm |
| enclosure nominal width | 600 mm |
| enclosure nominal depth | 250 mm |
| door type | Plain |
| mounting plate description | Without mounting plate |
| type of gland plate | Without gland plate |
| installation accessory type | Wall-mounting |
| product destination | For potentially explosive atmosphere |
| device composition |
1 door 1 lock body with clamped blind nut |
| body type |
Single piece body Gutter-shaped front rail double sheet thickness |
|---|---|
| number of doors | Front face: 1 door(s) |
| door opening side | Reversible (120 °) |
| lock type | 3 points lock, 3 mm double-bar |
| accessibility for operation | Front |
| removable parts | Door by hinges |
| material | Steel |
| surface finish | Epoxy-polyester powder |
| colour | Grey (RAL 7035) |
| Standards |
EN 60079-0:2012 EN 60079-7:2007 EN 60079-31:2009 |
| marking | II 2 GD Ex e IIC Gb Ex tb IIIC Db according to the ATEX directive 94/9/EC |
| Net weight | 15.5 kg |
| IK degree of protection | IK10 conforming to IEC 62262 |
|---|---|
| IP degree of protection | IP66 conforming to IEC 60529 (enclosures with single door) |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 15.5 kg |
| Package 1 Height | 61.8 cm |
| Package 1 width | 29.8 cm |
| Package 1 Length | 61.3 cm |
| Sustainable offer status | Green Premium product |
|---|---|
| REACh Regulation | REACh Declaration |
| REACh free of SVHC | Yes |
| EU RoHS Directive |
Pro-active compliance (Product out of EU RoHS legal scope)
EU RoHS Declaration |
| Mercury free | Yes |
| RoHS exemption information | Yes |
| China RoHS Regulation |
China RoHS declaration
Product out of China RoHS scope. Substance declaration for your information
|
| Environmental Disclosure | Product Environmental Profile |
| California proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Warranty | 18 months |
|---|
-
Spacial CRN NSYS3DEX6625
