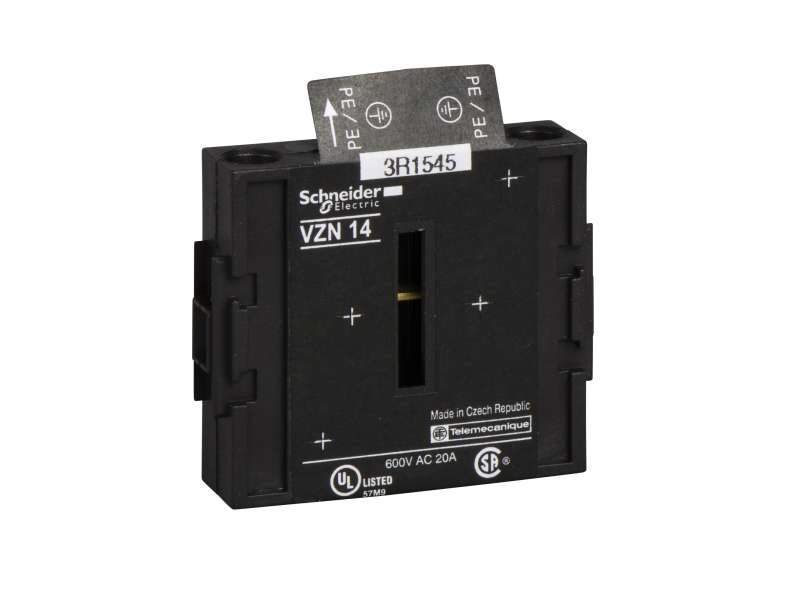

Schneider Electric TeSys Mini-VARIO - dodatni blok uzemljenja -20 A - za VN12, VN-20;VZN14
TeSys Mini-VARIO - additional earthing block -20 A - for VN12, VN-20...
VAT-exclusive price: 1.674,00 |
VAT-inclusive price: 2.008,80 |
TeSys Mini-VARIO - additional earthing block -20 A - for VN12, VN-20
| range |
TeSys
|
|
|---|---|---|
| device short name |
VZN
|
|
| product or component type |
Additional earthing block
|
|
| performance level |
Standard
|
|
| product compatibility |
VN12
VN20 |
|
| network type |
DC
AC |
|
| network frequency |
50/60 Hz
|
|
| mounting location |
Right
|
| range compatibility |
TeSys VARIO VCFN switch disconnector
|
|
|---|---|---|
| [Ue] rated operational voltage |
690 V AC 50/60 Hz
|
|
| [Uimp] rated impulse withstand voltage |
6 kV
|
|
| [Ith] conventional free air thermal current |
20 A
|
|
| mechanical durability |
50000 cycles
|
|
| electrical durability |
30000 cycles DC-11
50000 cycles AC-21 |
|
| connections - terminals |
Screw clamp terminals
|
|
| height |
45.5 mm
|
|
| width |
12 mm
|
|
| depth |
39 mm
|
|
| net weight |
0.016 kg
|
| standards |
IEC 60947-3
|
|
|---|---|---|
| product certifications |
CSA
UL GL |
|
| protective treatment |
TC
|
|
| IP degree of protection |
IP20 conforming to IEC 60529
|
|
| mechanical robustness |
Vibrations 10...150 Hz (5 gn) conforming to IEC 60068-2-6
Shocks 11 ms (15 gn) conforming to IEC 60068-2-27 |
|
| ambient air temperature for operation |
-20…50 °C
|
|
| fire resistance |
960 °C conforming to IEC 60695-2-1
|
| Unit Type of Package 1 |
PCE
|
|
|---|---|---|
| Number of Units in Package 1 |
1
|
|
| Package 1 Weight |
20 g
|
|
| Package 1 Height |
2.1 cm
|
|
| Package 1 width |
9.1 cm
|
|
| Package 1 Length |
6.3 cm
|
|
| Unit Type of Package 2 |
S01
|
|
| Number of Units in Package 2 |
30
|
|
| Package 2 Weight |
855 g
|
|
| Package 2 Height |
15 cm
|
|
| Package 2 width |
15 cm
|
|
| Package 2 Length |
40 cm
|
| Sustainable offer status |
Green Premium product
|
|
|---|---|---|
| REACh Regulation | ||
| EU RoHS Directive |
Compliant
EU RoHS Declaration |
|
| Mercury free |
Yes
|
|
-
TeSys Vario Mini-Vario VZN14
