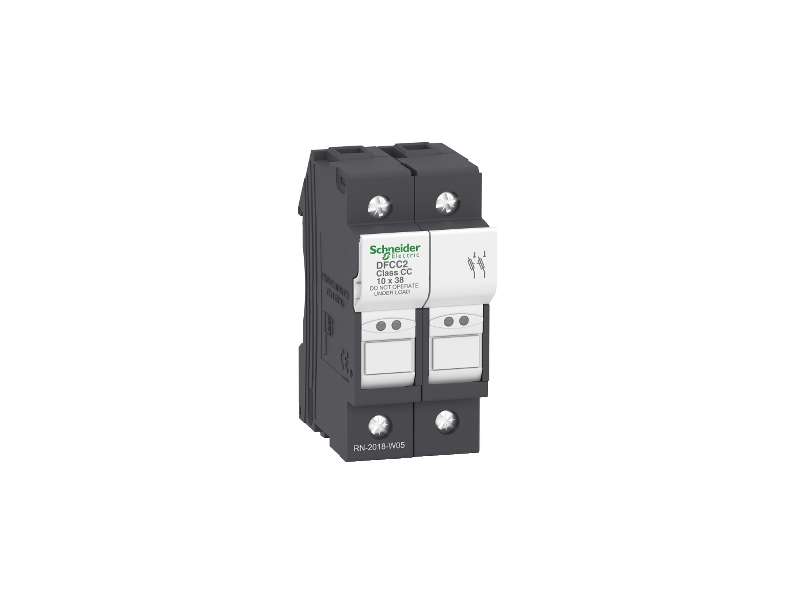

Schneider Electric TeSyS rastavljač sa osiguračima 2P 30A - osigurača klasa CC;DFCC2

Fuse carrier TeSys DF, 2P 30A, fuse class CC...

Brand: Schneider Electric
Product Code: DFCC2
Availability: Check availability

VAT-exclusive price: 6.753,00

VAT-inclusive price: 8.103,60

Qnt:

Description
Specification

Fuse carrier TeSys DF, 2P 30A, fuse class CC

Main
range	TeSys
product name	TeSys DF
product or component type	Fuse carrier
device short name	DFCC
poles description	2P
fuse type	, CC
control type	Toggle padlockable
utilisation category	AC-20B conforming to IEC 60947-3
[Ue] rated operational voltage	600 V AC
[Ie] rated operational current	30 A
[Ui] rated insulation voltage	600 V AC
[Uimp] rated impulse withstand voltage	6 kV
short-circuit withstand	200 kA 600 V conforming to UL 512
power dissipation in W	3 W maximum power dissipation by fuse

Complementary
standards	UL 4248-1 UL 4248-4 CSA C22.2 No 4248-1 CSA C22.2 No 4248-4
product certifications	UL recognized CSA
mounting support	35 mm symmetrical DIN rail
mounting position	Vertical (tolerance: +/- 23°)
connections - terminals	Screw clamp terminals 1 cable(s) 1…16 mm²rigid Screw clamp terminals 2 cable(s) 1…6 mm²rigid Screw clamp terminals 1 cable(s) 1…16 mm²flexible with or without Screw clamp terminals 2 cable(s) 1…6 mm²flexible with or without
tightening torque	2 N.m - with screwdriver PZ2 2 N.m - with screwdriver flat Ø 5.5 mm
height	79.5 mm
width	35 mm
depth	61 mm
net weight	0.085 kg
quantity per set	Set of 12

Environment
ambient air temperature for storage	-40…70 °C
ambient air temperature for operation	-40…70 °C with derating above 20°C
operating altitude	0...2000 m without derating
IP degree of protection	IP20
pollution degree	3
fire resistance	960 °C conforming to IEC 60695-2-1
compatibility code	DFCC

Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Weight	94.0 g
Package 1 Height	8.8 cm
Package 1 width	3.5 cm
Package 1 Length	6.4 cm
Unit Type of Package 2	BB1
Number of Units in Package 2	6
Package 2 Weight	568.0 g
Package 2 Height	6.8 cm
Package 2 width	8.5 cm
Package 2 Length	22.2 cm
Unit Type of Package 3	S03
Number of Units in Package 3	90
Package 3 Weight	11.783 kg
Package 3 Height	30.0 cm
Package 3 width	30.0 cm
Package 3 Length	40.0 cm

Contractual warranty
Warranty	18 months
