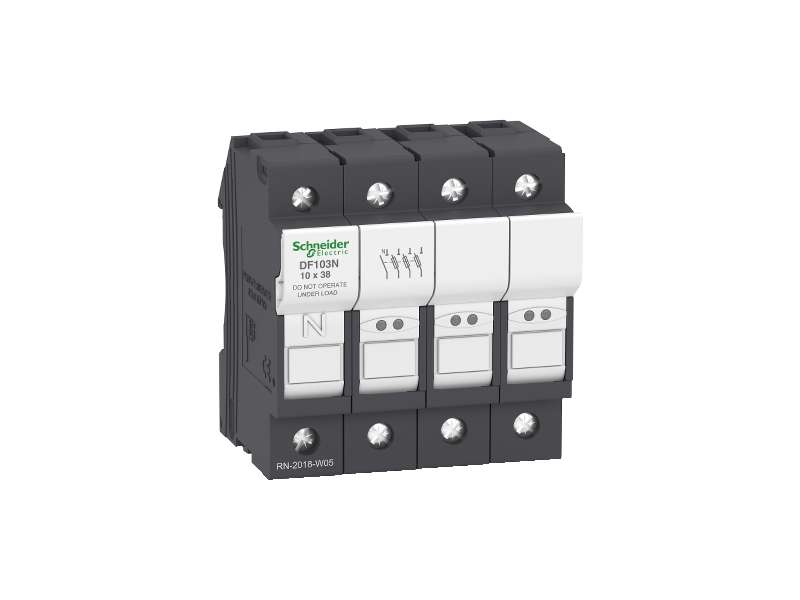

Schneider Electric TeSyS rastavljač sa osiguračima 3P N 32A - veličina osigurača 10 x 38 mm;DF103N

Fuse carrier TeSys DF, 3P+N 32A, fuse size 10x38 mm...

Brand: Schneider Electric
Product Code: DF103N
Availability: Check availability

VAT-exclusive price: 4.051,00

VAT-inclusive price: 4.861,20

Qnt:

Description
Specification

Fuse carrier TeSys DF, 3P+N 32A, fuse size 10x38 mm

Main
range	TeSys
product name	TeSys DF
product or component type	Fuse carrier
device short name	DF10
device composition	Tubular link for locked in Neutral pole
product compatibility	DF2CA fuse cartridge DF2CN fuse cartridge
poles description	3P + N
fuse size	10 x 38 mm
fuse type	, gG , aM
control type	Toggle padlockable
utilisation category	AC-20B conforming to IEC 60947-3 DC-20B conforming to IEC 60947-3
[Ue] rated operational voltage	690 V AC 690 V DC
[Ie] rated operational current	32 A at 400 V AC
[Ith] conventional free air thermal current	32 A 20 °C
[Ui] rated insulation voltage	690 V AC
[Uimp] rated impulse withstand voltage	6 kV
overvoltage category	III
short-circuit withstand	120 kA 400 V conforming to IEC 60947-3 120 kA 500 V conforming to IEC 60947-3
power dissipation in W	3 W maximum power dissipation by fuse

Complementary
standards	EN/IEC 60947-3 EN/IEC 60269-2 UL 4248-1 CSA C22.2 No 4248-1 EN 45545-2: R22 HL2
product certifications	IEC UL recognized CSA CCC EAC DNV-GL
mounting support	35 mm symmetrical DIN rail
mounting position	Vertical (tolerance: +/- 23°)
connections - terminals	Screw clamp terminals 1 cable(s) 1…16 mm²rigid Screw clamp terminals 2 cable(s) 1…6 mm²rigid Screw clamp terminals 1 cable(s) 1…16 mm²flexible with or without Screw clamp terminals 2 cable(s) 1…6 mm²flexible with or without
tightening torque	2.2 N.m - with screwdriver PZ2 2.2 N.m - with screwdriver flat Ø 5.5 mm
height	79.5 mm
width	70 mm
depth	61 mm
net weight	0.171 kg
quantity per set	Set of 3

Environment
ambient air temperature for storage	-40…70 °C
ambient air temperature for operation	-40…70 °C with derating above 20°C
operating altitude	0...2000 m
IP degree of protection	IP20
pollution degree	3
fire resistance	960 °C conforming to IEC 60695-2-1
compatibility code	DF10

Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Weight	180.0 g
Package 1 Height	6.2 cm
Package 1 width	7.0 cm
Package 1 Length	8.0 cm
Unit Type of Package 2	BB1
Number of Units in Package 2	3
Package 2 Weight	579.0 g
Package 2 Height	6.8 cm
Package 2 width	22.0 cm
Package 2 Length	8.4 cm
Unit Type of Package 3	P06
Number of Units in Package 3	360
Package 3 Weight	106.844 kg
Package 3 Height	77.0 cm
Package 3 width	60.0 cm
Package 3 Length	80.0 cm

Contractual warranty
Warranty	18 months
