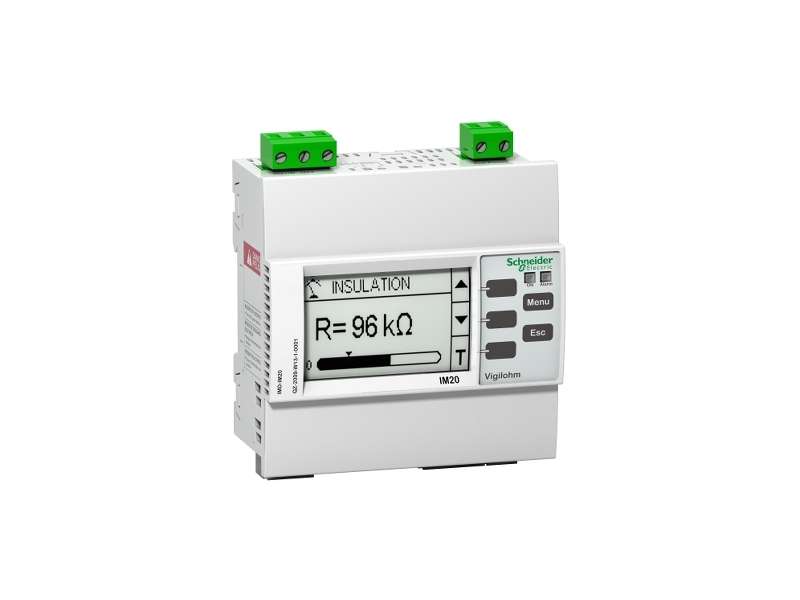

Schneider Electric VIGILOHM IM20 110-415VCA;IMD-IM20
VIGILOHM IM20 110 - 415 VAC...
VAT-exclusive price: 89.858,00 |
VAT-inclusive price: 107.829,60 |
VIGILOHM IM20 110 - 415 VAC
| range | Vigilohm |
|---|---|
| device short name | IM20 |
| product or component type | Insulation monitoring device |
| device application |
Marine application Standard environment application |
| electrical circuit type | Medium or low disturbed network |
| earthing system | IT |
| user language |
Spanish English French German Russian Chinese Portuguese Italian |
| network rated voltage |
0…600 V - AC at 45...440 Hz (device connected to neutral) 0…480 V - AC at 45...440 Hz (device connected to phase) 0…345 V - DC |
|---|---|
| data recording | Alarm logs |
| type of measurement |
Network insulation resistance - measurement range: 0.1 kOhm...10 MOhm Earth leakage capacitance - measurement range: 0.1...40 µF History of alarms |
| local signalling |
Green indicator light: satisfactory insulation resistance White indicator light: below prevention threshold Orange indicator light: below fault threshold Orange flashing indicator light: transient fault |
| threshold setting |
Prevent: 1 kOhm...1 MOhm Fault: 0.5...500 kOhm |
| time delay range | 0...5 min for signalling circuit |
| response time | <= 5 s |
| auxiliary supply voltage |
110...415 V AC 45...440 Hz +/- 15 % 125...250 V DC +/- 15 % |
| power consumption in VA | 12 VA |
| measurement voltage | 75 V |
| measurement current | 0…0.4 mA |
| internal impedance | 110 kOhm - AC at 0.1...440 Hz |
| test function |
Manual Self test |
| output contact | 1 C/O standard or fail-safe |
| breaking capacity |
250 V - AC at 6 A 12...24 V - DC at 6 A |
| input function | Injection inhibition: 24 V DC 5 mA |
| communication port protocol | Modbus |
| communication port support | RS485 |
| display type | Digital display |
| mounting mode |
Clip-on Flush-mounted |
| mounting support |
DIN rail Panel |
| connections - terminals | Removable screw terminal block0.2…2.5 mm² |
| material | Thermoplastic |
| overvoltage category | III |
| net weight | 0.25 kg |
| height | 110 mm |
| width | 96 mm |
| depth | 59 mm |
| dielectric strength |
4000 V - AC 5500 V - DC |
|---|---|
| IP degree of protection | Front face: IP52 |
| environmental characteristic |
Exposure to damp heat not in service conforming to IEC 60068-2-30 Exposure to damp heat in service conforming to IEC 60068-2-56 Salt mist conforming to IEC 60068-2-52 |
| operating altitude | <= 3000 m |
| pollution degree | 2 |
| type of installation | Indoor |
| standards |
IEC 60364-4-41 IEC 61010-1 IEC 61557-8 IEC 61326-2-4 |
| product certifications |
BV DNV CE EAC RMRS |
| ambient air temperature for operation | -25…55 °C |
| ambient air temperature for storage | -40…70 °C |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 443.0 g |
| Package 1 Height | 10.5 cm |
| Package 1 width | 13.5 cm |
| Package 1 Length | 16.5 cm |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 8 |
| Package 2 Weight | 4.17 kg |
| Package 2 Height | 30 cm |
| Package 2 width | 30 cm |
| Package 2 Length | 40 cm |
| Warranty | 18 months |
|---|
