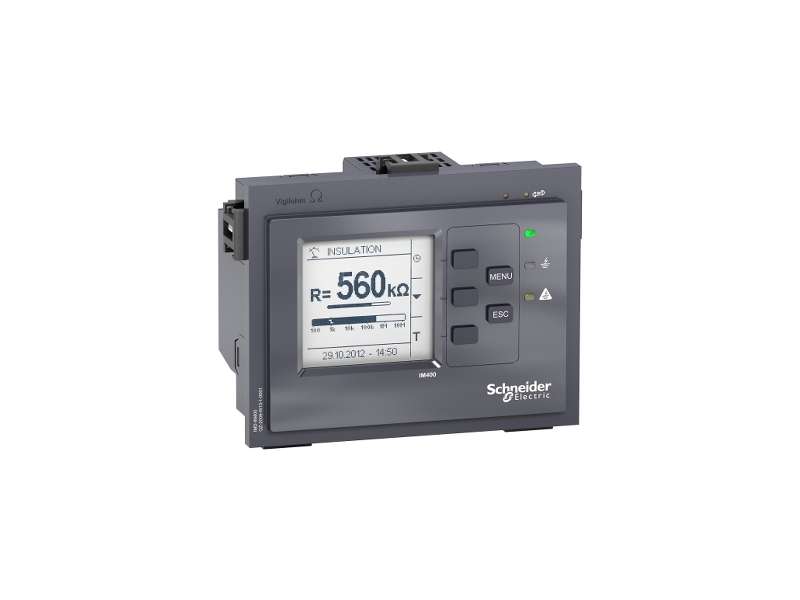

VIGILOHM IM400 100 - 440 VAC
| range | Vigilohm |
|---|---|
| device short name | IM400 |
| product or component type | Insulation monitoring device |
| device application |
Marine application Standard environment application |
| electrical circuit type | Large or highly disturbed network |
| earthing system | IT |
| user language |
Italian French German Chinese Portuguese Russian Spanish English |
| network rated voltage |
0…480 V - AC at 45...440 Hz (device connected to phase) 0…830 V - AC at 45...440 Hz (device connected to neutral) 0…480 V - DC |
|---|---|
| type of measurement |
Network insulation resistance - measurement range: 10 Ohm...10 MOhm Earth leakage capacitance - measurement range: 0.1...500 µF |
| local signalling |
Green indicator light: satisfactory insulation resistance White indicator light: below prevention threshold Red indicator light: wiring or internal fault Yellow indicator light: insulation fault Yellow flashing indicator light: communication |
| threshold setting |
Pre-alarm: 1 kOhm...1 MOhm Alarm: 40 Ohm...500 kOhm |
| time delay range | 0...120 min for signalling circuit |
| response time | <= 4 s |
| auxiliary supply voltage |
100...440 V AC 50/60 Hz +/- 15 % 100...440 V AC 400 Hz +/- 15 % 100...440 V DC +/- 15 % |
| power consumption in VA | 25 VA |
| measurement voltage |
120 V 15 V 33 V |
| measurement current |
0…3 mA 0…825 µA 0…375 µA |
| internal impedance |
40 kOhm - AC at 0.1...440 Hz 40 kOhm - DC |
| test function |
Manual Self test |
| output contact | 2 C/O standard or fail-safe |
| breaking capacity |
250 V - AC at 6 A 48 V - DC at 1 A |
| input function | Injection inhibition: 24 V AC 5 mA |
| communication port protocol | Modbus |
| communication port support | RS485 |
| display type | Digital display |
| mounting mode | Flush-mounted |
| mounting support | Panel |
| mounting position | Horizontal |
| connections - terminals | Removable screw terminal block0.2…2.5 mm² |
| material | Thermoplastic |
| overvoltage category | III |
| net weight | 0.75 kg |
| cut-out dimensions | 112 x 148 mm |
| height | 123 mm |
| width | 159 mm |
| depth | 90 mm |
| dielectric strength |
4000 V - AC 5500 V - DC |
|---|---|
| IP degree of protection |
Case: IP20 Front face: IP54 |
| environmental characteristic |
Exposure to damp heat not in service conforming to IEC 60068-2-30 Exposure to damp heat in service conforming to IEC 60068-2-56 Salt mist conforming to IEC 60068-2-52 |
| operating altitude | <= 3000 m |
| pollution degree | 2 |
| relative humidity | 0…90 % |
| type of installation | Indoor |
| standards |
IEC 60364-4-41 IEC 61010-1 IEC 61557-8 CSA C22.2 No 14-05 IEC 60364-5-51 UL 508 |
| product certifications |
DNV RMRS CE ABS EAC CSA cULus UL |
| ambient air temperature for operation | -25…55 °C |
| ambient air temperature for storage | -40…70 °C |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 946.0 g |
| Package 1 Height | 14 cm |
| Package 1 width | 17.5 cm |
| Package 1 Length | 21.2 cm |
| Unit Type of Package 2 | P06 |
| Number of Units in Package 2 | 32 |
| Package 2 Weight | 43.2 kg |
| Package 2 Height | 75 cm |
| Package 2 width | 60 cm |
| Package 2 Length | 80 cm |
| Unit Type of Package 3 | S03 |
| Number of Units in Package 3 | 4 |
| Package 3 Weight | 4.4 kg |
| Package 3 Height | 30 cm |
| Package 3 width | 30 cm |
| Package 3 Length | 40 cm |
