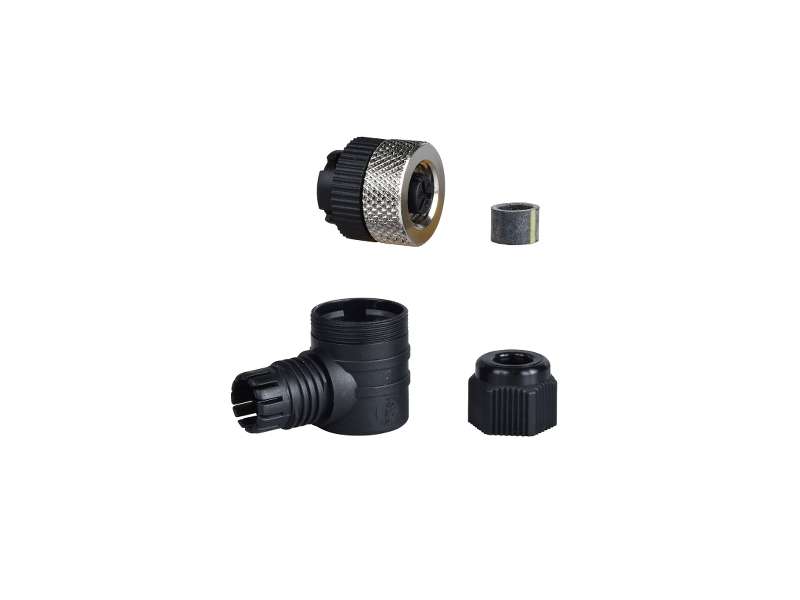

Schneider Electric ženski, 1/2 20UNF, 3-pinski, zglobni konektor - kablovska uvodnica Pg 7;XZCC20FCM30B
Female, 1/2 20UNF, 3 pin, elbowed connector, cable gland Pg 7...
VAT-exclusive price: 2.408,00 |
VAT-inclusive price: 2.889,60 |
Female, 1/2 20UNF, 3 pin, elbowed connector, cable gland Pg 7
| range of product | Telemecanique Cabling components |
|---|---|
| accessory / separate part category | Cabling accessories |
| Accessory / separate part type | Connector |
| electrical connection | Elbowed female connector 1/2 20 UNF, 3 pins |
| collar material | Metal |
| status LED | Without |
| cable connection | Screw terminal / wire size <0.75 mm² / clamping capacity 3…6 mm |
| cable gland type | Pg 7 |
|---|---|
| cable connector fixing | Screw-on |
| [Ue] rated operational voltage | 250 V AC |
| [In] rated current | 4 A |
| enclosure material | Plastic |
| minimum insulating resistance | 1000 GΩ |
| contact resistance | 8000 µOhm |
| net weight | 0.02 kg |
| IP degree of protection | IP67 |
|---|---|
| ambient air temperature for operation | -40…85 °C |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 24.0 g |
| Package 1 Height | 2.0 cm |
| Package 1 width | 3.6 cm |
| Package 1 Length | 4.0 cm |
| Unit Type of Package 2 | S01 |
| Number of Units in Package 2 | 50 |
| Package 2 Weight | 1.376 kg |
| Package 2 Height | 15.0 cm |
| Package 2 width | 15.0 cm |
| Package 2 Length | 40.0 cm |
| Warranty | 18 months |
|---|
