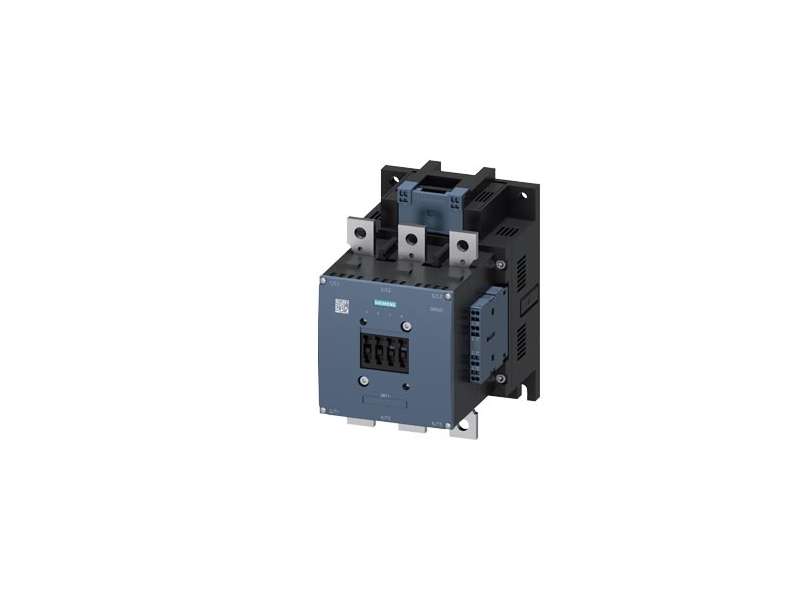

SIEMENS KONTAKTOR 3RT1065-2NP36
The Siemens 3RT1065-2NP36 is a high-performance 3-pole motor contactor rated for 265 A and 132 kW at 400 V (AC-3). It operates with a 200–277 V UC control...
VAT-exclusive price: 75.941,15 |
VAT-inclusive price: 91.129,38 |
-
The Siemens 3RT1065-2NP36 is a high-performance 3-pole motor contactor rated for 265 A and 132 kW at 400 V (AC-3). It operates with a 200–277 V UC control voltage and features 2 NO + 3 NC auxiliary contacts. Designed with a PLC input for precise control, it is housed in a size S10 casing and uses screw-type terminals.
| Product Name | Contactor 3RT1065-2NP36 |
| Rated Current | 265 A |
| Motor Power (400 V) | 132 kW |
| Control Voltage | 200–277 V UC |
| Main Contacts | 3 NO |
| Auxiliary Contacts | 2 NO + 3 NC |
| PLC Input | Yes |
| Terminal Type | Screw terminal |
| Size | S10 |
| Weight | 4.6 kg |
