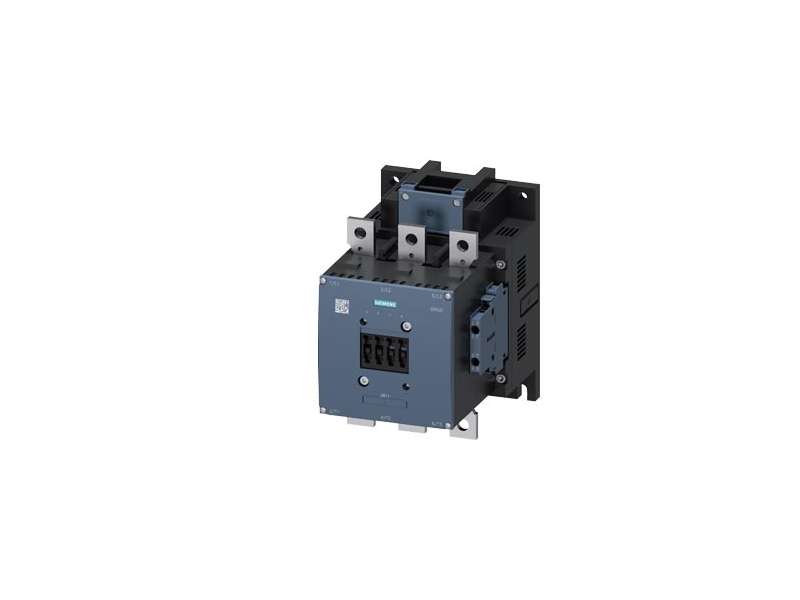

SIEMENS Kontaktor 3RT1066-6AP36
The Siemens 3RT1066-6AP36 is a heavy-duty motor contactor from the 3RT1 series, size S10. Designed for switching motors up to 300 A and 160 kW at 400 V AC...
VAT-exclusive price: 83.720,78 |
VAT-inclusive price: 100.464,94 |
The Siemens 3RT1066-6AP36 is a heavy-duty motor contactor from the 3RT1 series, size S10. Designed for switching motors up to 300 A and 160 kW at 400 V AC (AC-3), this unit features a 24 V DC control coil and 3 NO main contacts. It includes 2 NO + 2 NC auxiliary contacts and is equipped with spring-type terminals for fast wiring. The contactor is suitable for mounting directly on a busbar system, offering high performance in compact industrial installations.
| Product Specification | |
|---|---|
| Product Code | 3RT1066-6AP36 |
| Type | Motor Contactor |
| Series | 3RT1 |
| Size | S10 |
| Rated Current | 300 A |
| Power Rating | 160 kW (AC-3 / 400 V) |
| Control Voltage | 24 V DC |
| Main Contacts | 3 NO |
| Auxiliary Contacts | 2 NO + 2 NC |
| Connection Type | Spring Terminals |
| Mounting | Busbar System |
| Weight | 2.7 kg |
