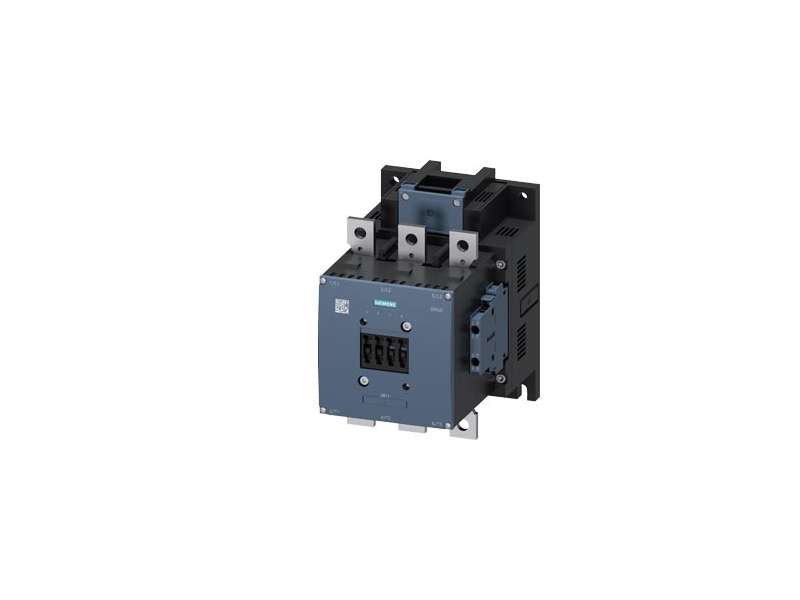

SIEMENS Kontaktor 3RT1066-6AF36

SIEMENS Kontaktor 3RT1066-6AF36

The Siemens 3RT1066-6AF36 is a heavy-duty motor contactor from the 3RT1 series, size S10. Engineered for high-load applications, it supports AC-3 switching of motors...

Brand: SIEMENS
Product Code: 3RT1066-6AF36
Availability: Check availability
VAT-exclusive price: 83.720,78
VAT-inclusive price: 100.464,94


The Siemens 3RT1066-6AF36 is a heavy-duty motor contactor from the 3RT1 series, size S10. Engineered for high-load applications, it supports AC-3 switching of motors up to 300 A and 160 kW at 400 V. Equipped with a universal coil rated for 110–127 V AC/DC operation, it features 3 NO main contacts and 2 NO + 2 NC auxiliary contacts. With screw terminals and robust construction, it is ideal for demanding industrial motor control systems.



Product Specification
Product Code3RT1066-6AF36
TypeMotor Contactor
Series3RT1
SizeS10
Rated Current300 A
Power Rating160 kW (AC-3 / 400 V)
Control Voltage110–127 V AC/DC
Main Contacts3 NO
Auxiliary Contacts2 NO + 2 NC
Connection TypeScrew Terminals
MountingDIN Rail / Panel
Weight2.7 kg
