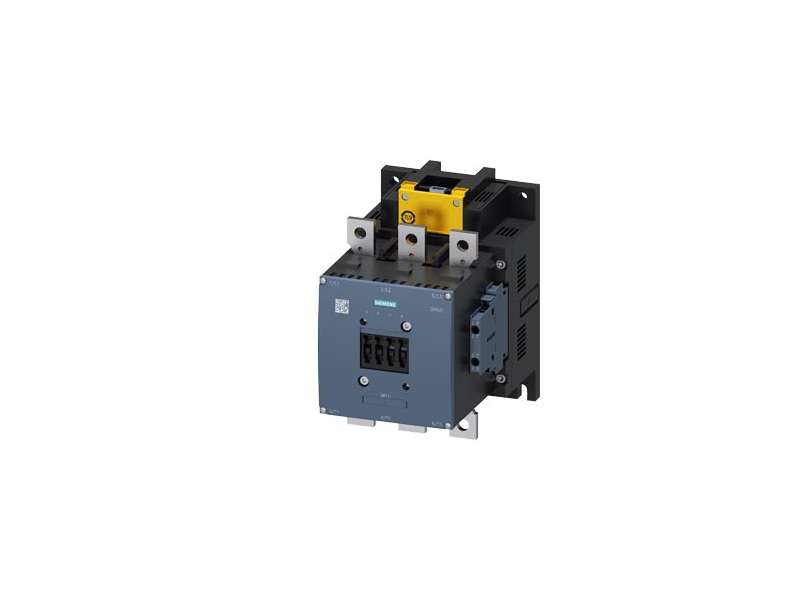

SIEMENS Kontaktor 3RT1066-6SP36
The Siemens 3RT1066-6SP36 is a heavy-duty motor contactor from the 3RT1 series, size S10, suitable for AC-3 applications up to 300 A and 160 kW at 400 V. It...
VAT-exclusive price: 93.463,23 |
VAT-inclusive price: 112.155,87 |
The Siemens 3RT1066-6SP36 is a heavy-duty motor contactor from the 3RT1 series, size S10, suitable for AC-3 applications up to 300 A and 160 kW at 400 V. It features a universal coil for both AC and DC operation in the 200–277 V range. With 3 NO main contacts and 2 NO + 2 NC auxiliary contacts, the contactor is designed for efficient motor control in industrial environments. It is equipped with spring-type terminals, ensuring fast, secure wiring.
| Product Specification | |
|---|---|
| Product Code | 3RT1066-6SP36 |
| Type | Motor Contactor |
| Series | 3RT1 |
| Size | S10 |
| Rated Current | 300 A |
| Power Rating | 160 kW (AC-3 / 400 V) |
| Control Voltage | 200–277 V AC/DC |
| Main Contacts | 3 NO |
| Auxiliary Contacts | 2 NO + 2 NC |
| Connection Type | Spring Terminals |
| Mounting | DIN Rail / Panel |
| Weight | 2.7 kg |
