SIEMENS Kontaktor 3RT1075-2AP36
The Siemens 3RT1075-2AP36 is a high-capacity motor contactor from the 3RT1 series, size S12. Engineered for industrial motor control applications, it handles currents...
VAT-exclusive price: 106.381,86 |
VAT-inclusive price: 127.658,23 |

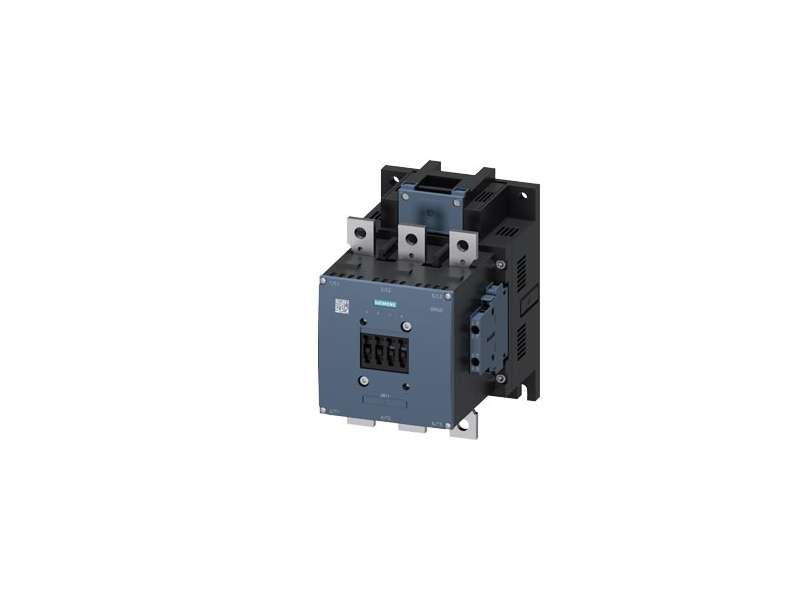

The Siemens 3RT1075-2AP36 is a high-capacity motor contactor from the 3RT1 series, size S12. Engineered for industrial motor control applications, it handles currents up to 400 A and power ratings up to 200 kW at 400 V AC (AC-3). The contactor operates with a 200–240 V AC/DC universal coil and features 3 NO main contacts along with 2 NO + 2 NC auxiliary contacts. Its screw terminals and robust build make it ideal for demanding environments.
| Product Specification | |
|---|---|
| Product Code | 3RT1075-2AP36 |
| Type | Motor Contactor |
| Series | 3RT1 |
| Size | S12 |
| Rated Current | 400 A |
| Power Rating | 200 kW (AC-3 / 400 V) |
| Control Voltage | 200–240 V AC/DC |
| Main Contacts | 3 NO |
| Auxiliary Contacts | 2 NO + 2 NC |
| Connection Type | Screw Terminals |
| Mounting | DIN Rail / Panel |
| Weight | 3.8 kg |
