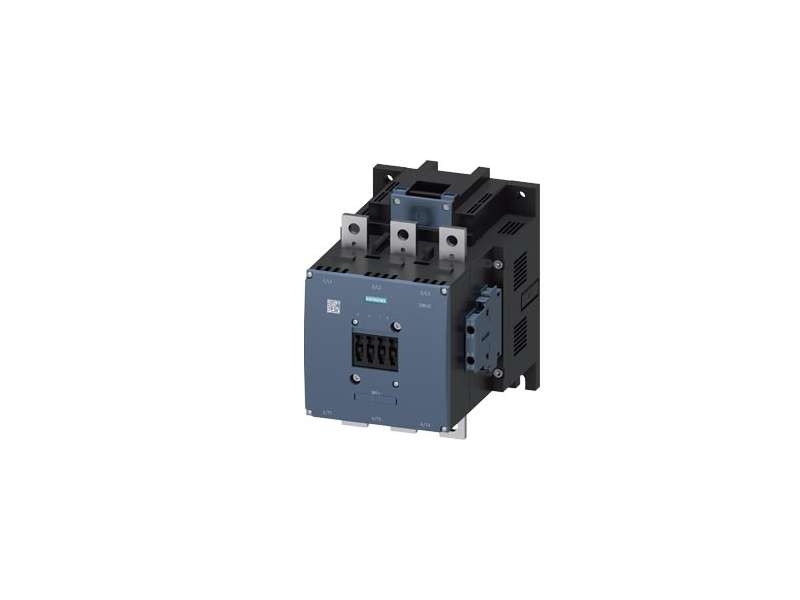

SIEMENS Kontaktor 3RT1476-6AP36
The Siemens 3RT1476-6AP36 is a high-power AC-1 contactor from the 3RT1 series, size S120, designed for switching currents up to 690 A at 690 V. It is equipped...
VAT-exclusive price: 119.926,21 |
VAT-inclusive price: 143.911,45 |
The Siemens 3RT1476-6AP36 is a high-power AC-1 contactor from the 3RT1 series, size S120, designed for switching currents up to 690 A at 690 V. It is equipped with a universal control coil (220–240 V AC/DC) and includes 2 NO + 2 NC auxiliary contacts. Its robust construction, screw terminals, and high switching capacity make it ideal for demanding industrial and power distribution applications.
| Product Specification | |
|---|---|
| Product Code | 3RT1476-6AP36 |
| Type | AC-1 Power Contactor |
| Series | 3RT1 |
| Size | S120 |
| Rated Current | 690 A (AC-1) |
| Rated Voltage | 690 V |
| Control Voltage | 220–240 V AC/DC |
| Auxiliary Contacts | 2 NO + 2 NC |
| Connection Type | Screw Terminals |
| Poles | 3-pole |
| Weight | 10.5 kg |
