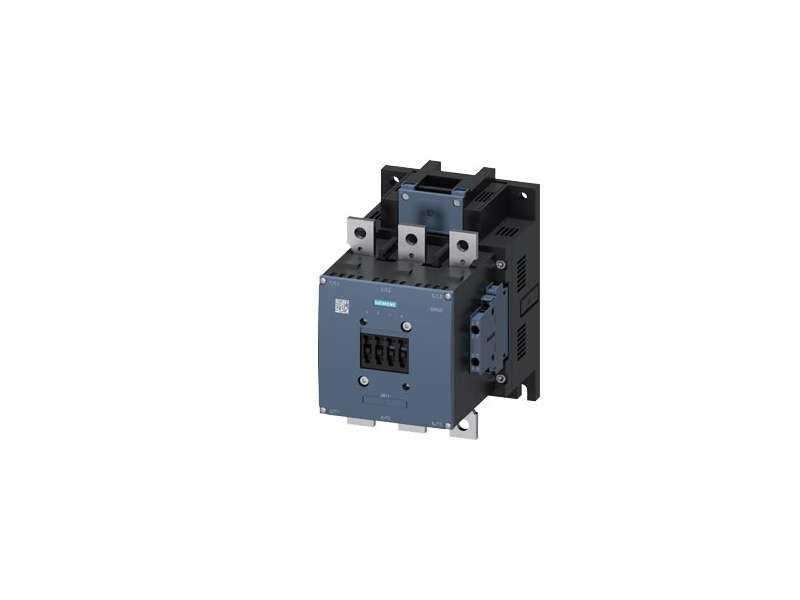

SIEMENS Kontaktor 3RT1075-6AB36
The Siemens 3RT1075-6AB36 is a high-power motor contactor from the 3RT1 series, size S12. Designed for switching loads up to 400 A and 200 kW at 400 V AC (AC-3),...
VAT-exclusive price: 106.381,86 |
VAT-inclusive price: 127.658,23 |
The Siemens 3RT1075-6AB36 is a high-power motor contactor from the 3RT1 series, size S12. Designed for switching loads up to 400 A and 200 kW at 400 V AC (AC-3), it is equipped with a universal coil rated at 230–260 V for both AC and DC operation. The contactor includes 3 NO main contacts and 2 NO + 2 NC auxiliary contacts, with screw terminals for secure wiring. Its durable construction makes it ideal for heavy-duty industrial motor control applications.
| Product Specification | |
|---|---|
| Product Code | 3RT1075-6AB36 |
| Type | Motor Contactor |
| Series | 3RT1 |
| Size | S12 |
| Rated Current | 400 A |
| Power Rating | 200 kW (AC-3 / 400 V) |
| Control Voltage | 230–260 V AC/DC |
| Main Contacts | 3 NO |
| Auxiliary Contacts | 2 NO + 2 NC |
| Connection Type | Screw Terminals |
| Mounting | DIN Rail / Panel |
| Weight | 3.8 kg |
