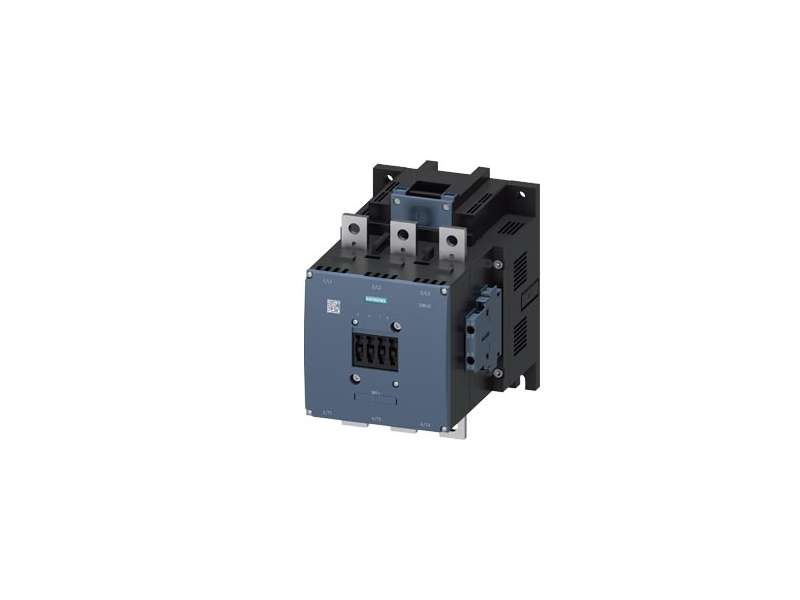

SIEMENS Kontaktor 3RT1076-6NP36
The Siemens 3RT1076-6NP36 is a heavy-duty motor contactor from the 3RT1 series, size S12, designed for AC-3 applications up to 500 A and 250 kW at 400 V. Equipped...
VAT-exclusive price: 169.380,06 |
VAT-inclusive price: 203.256,07 |
The Siemens 3RT1076-6NP36 is a heavy-duty motor contactor from the 3RT1 series, size S12, designed for AC-3 applications up to 500 A and 250 kW at 400 V. Equipped with a universal coil rated at 200–277 V AC/DC, it includes 3 NO main contacts and 2 NO + 2 NC auxiliary contacts. With robust screw terminals and industrial-grade construction, this contactor ensures reliable performance in demanding environments.
| Product Specification | |
|---|---|
| Product Code | 3RT1076-6NP36 |
| Type | Motor Contactor |
| Series | 3RT1 |
| Size | S12 |
| Rated Current | 500 A |
| Power Rating | 250 kW (AC-3 / 400 V) |
| Control Voltage | 200–277 V AC/DC |
| Main Contacts | 3 NO |
| Auxiliary Contacts | 2 NO + 2 NC |
| Connection Type | Screw Terminals |
| Mounting | DIN Rail / Panel |
| Weight | 4.6 kg |
