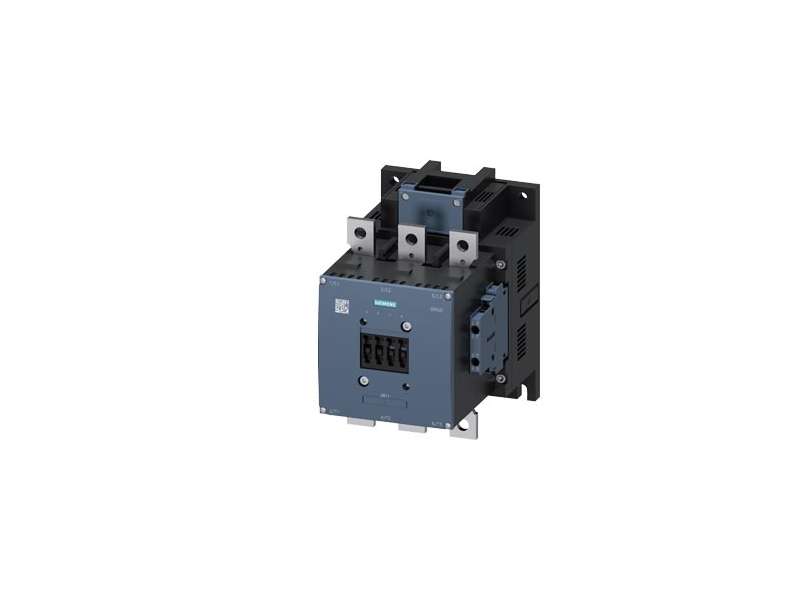

SIEMENS Kontaktor 3RT1466-6AP36
The Siemens 3RT1466-6AP36 is a 3-pole AC-1 contactor from the 3RT1 series, size S6, designed to switch currents up to 300 A at 400 V. Equipped with a 220–240 V...
VAT-exclusive price: 72.823,81 |
VAT-inclusive price: 87.388,57 |
The Siemens 3RT1466-6AP36 is a 3-pole AC-1 contactor from the 3RT1 series, size S6, designed to switch currents up to 300 A at 400 V. Equipped with a 220–240 V AC/DC control coil and 2 NO + 2 NC auxiliary contacts, it offers reliable performance and flexibility in demanding industrial environments. The screw-type terminal connections ensure secure and easy installation.
| Product Specification | |
|---|---|
| Product Code | 3RT1466-6AP36 |
| Type | AC-1 Contactor |
| Series | 3RT1 |
| Size | S6 |
| Rated Current | 300 A (AC-1) |
| Rated Voltage | 400 V |
| Control Voltage | 220–240 V AC/DC |
| Auxiliary Contacts | 2 NO + 2 NC |
| Connection Type | Screw Terminals |
| Poles | 3-pole |
| Weight | 4.5 kg |
