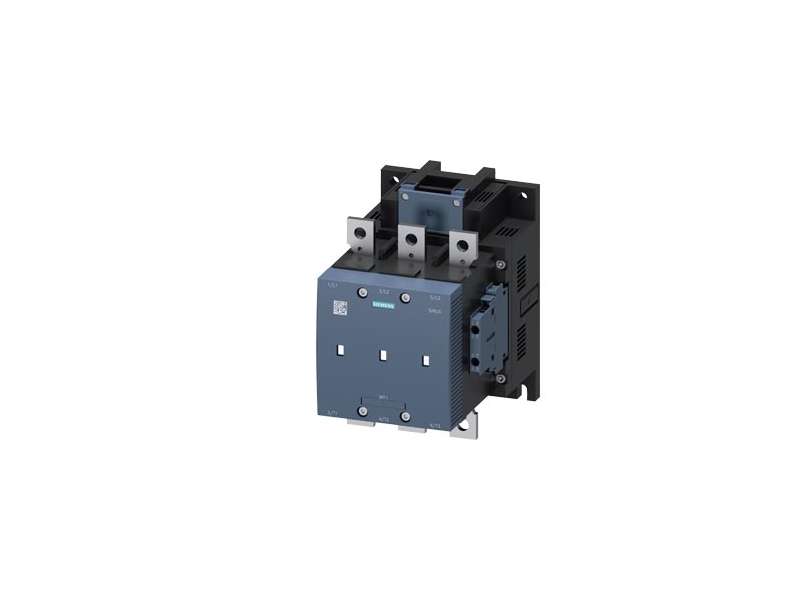

Klemsan Kontaktor 3RT1266-6AP36
The Siemens 3RT1266-6AP36 is a vacuum motor contactor from the 3RT1 series, size S10, designed for high-performance switching of motors up to 300 A and 160 kW...
VAT-exclusive price: 132.282,42 |
VAT-inclusive price: 158.738,90 |
The Siemens 3RT1266-6AP36 is a vacuum motor contactor from the 3RT1 series, size S10, designed for high-performance switching of motors up to 300 A and 160 kW at 400 V AC. It is equipped with a control coil rated for 220–240 V AC/DC and features 3 NO main contacts plus 2 NO + 2 NC auxiliary contacts. With vacuum arc interruption, screw terminals, and compact industrial design, it provides long-term reliability and efficient motor control.
| Product Specification | |
|---|---|
| Product Code | 3RT1266-6AP36 |
| Type | Vacuum Motor Contactor |
| Series | 3RT1 |
| Size | S10 |
| Rated Current | 300 A |
| Power Rating | 160 kW (AC-3 / 400 V) |
| Control Voltage | 220–240 V AC/DC |
| Main Contacts | 3 NO |
| Auxiliary Contacts | 2 NO + 2 NC |
| Arc Suppression | Vacuum Interruption |
| Connection Type | Screw Terminals |
| Weight | 4.3 kg |
