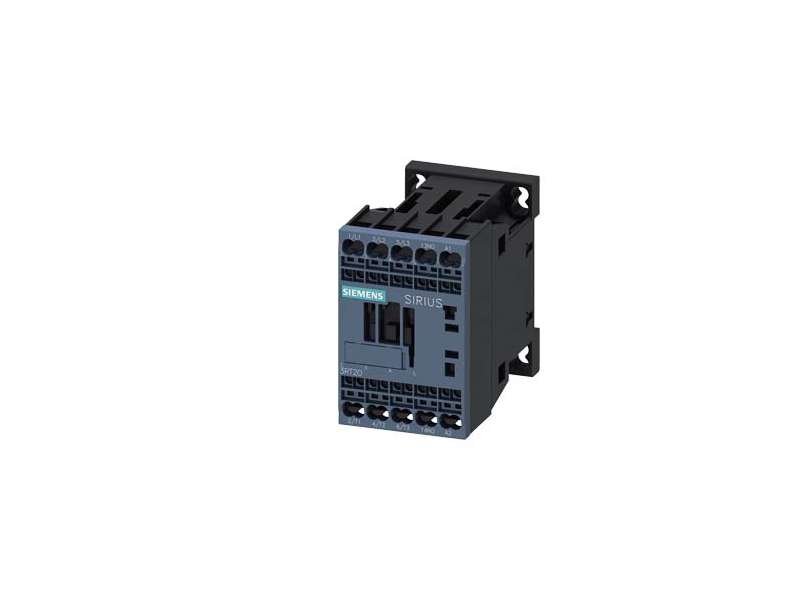

SIEMENS Kontaktor 3RT2016-2KB42
The 3RT2016-2KB42 is a 3-pole contactor rated at 9 A and 4 kW (400 V), designed for AC-3 applications. It features one normally closed (1NC) contact and a...
VAT-exclusive price: 2.653,14 |
VAT-inclusive price: 3.183,77 |
The 3RT2016-2KB42 is a 3-pole contactor rated at 9 A and 4 kW (400 V), designed for AC-3 applications. It features one normally closed (1NC) contact and a 24 V DC coil with an integrated suppressor diode, ideal for PLC-controlled systems. Spring-type terminals ensure fast and secure wiring. The compact S00 size contactor is not expandable with auxiliary contact blocks.
| Specification | Details |
|---|---|
| Product Code | 3RT2016-2KB42 |
| Application | Motor Contactor (AC-3) |
| Main Contacts | 3 NO |
| Auxiliary Contacts | 1 NC |
| Rated Current | 9 A |
| Rated Power | 4 kW at 400 V |
| Coil Voltage | 24 V DC (0.7–1.25×Us) |
| Integrated Protection | Suppressor diode |
| Terminal Type | Spring-type terminal |
| Suitable for | PLC outputs |
| Auxiliary Block Expandable | No |
| Size | S00 |
| Typical Weight | 0.230 kg |
