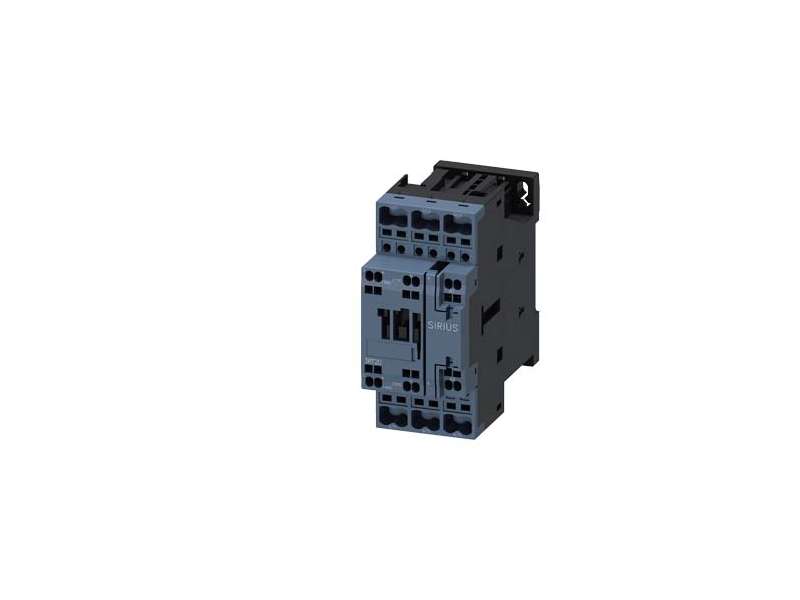

SIEMENS KONTAKTOR 3RT2026-2AL20 25A 1O+1C
The 3RT2026-2AL20 AC-3 contactor is designed for switching three-phase motors up to 11 kW at 400 V. It features a rated current of 25 A, 1 NO + 1 NC contacts,...
VAT-exclusive price: 4.676,39 |
VAT-inclusive price: 5.611,67 |
The 3RT2026-2AL20 AC-3 contactor is designed for switching three-phase motors up to 11 kW at 400 V. It features a rated current of 25 A, 1 NO + 1 NC contacts, and operates with a 230 V AC coil (50/60 Hz). Equipped with spring-type terminals for quick and tool-free wiring. Its compact Size S0 makes it ideal for use in industrial control panels.
| Product Specification | |
|---|---|
| Product Name | 3RT2026-2AL20 |
| Type | Power Contactor |
| AC-3 Rated Current | 25 A |
| AC-3 Motor Power | 11 kW @ 400 V |
| Contact Configuration | 1 NO + 1 NC |
| Coil Voltage | 230 V AC, 50/60 Hz |
| Number of Poles | 3 |
| Size | S0 |
| Connection Type | Spring terminal |
| Weight | 0.36 kg |
