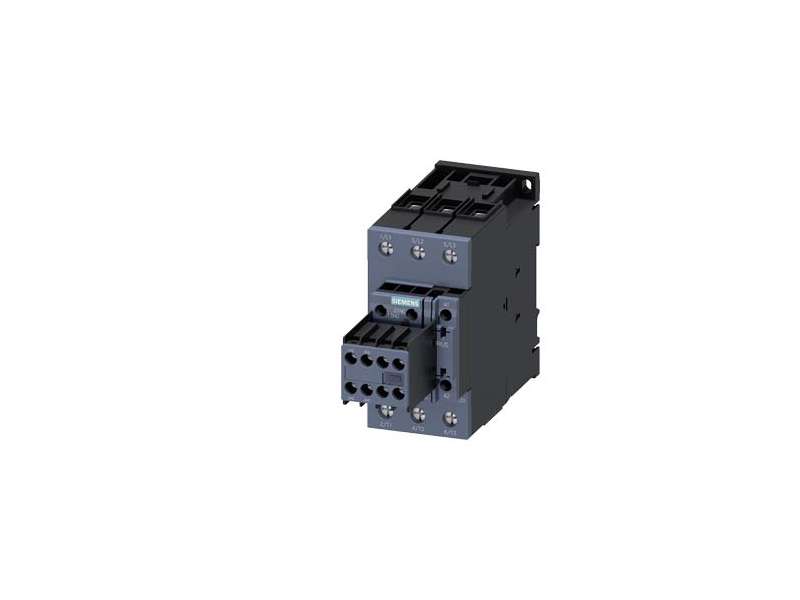

SIEMENS KONTAKTOR 3RT2036-1AB04 50A 24VAC 2O+2C
The 3RT2036-1AB04 power contactor is designed for controlling three-phase motors up to 22 kW at 400 V in AC-3 applications. It features a rated current of 50 A...
VAT-exclusive price: 10.825,29 |
VAT-inclusive price: 12.990,35 |
The 3RT2036-1AB04 power contactor is designed for controlling three-phase motors up to 22 kW at 400 V in AC-3 applications. It features a rated current of 50 A and a versatile contact configuration of 2 NO + 2 NC. The device operates on 24 V AC (50 Hz), has a 3-pole design, screw terminals, and belongs to Size S2.
| Product Specification | |
|---|---|
| Product Name | 3RT2036-1AB04 |
| Type | Power Contactor |
| Rated Current (AC-3) | 50 A |
| Motor Power | 22 kW @ 400 V |
| Contact Configuration | 2 NO + 2 NC |
| Coil Voltage | 24 V AC, 50 Hz |
| Number of Poles | 3 |
| Size | S2 |
| Terminal Type | Screw terminals |
| Weight | 1.10 kg |
