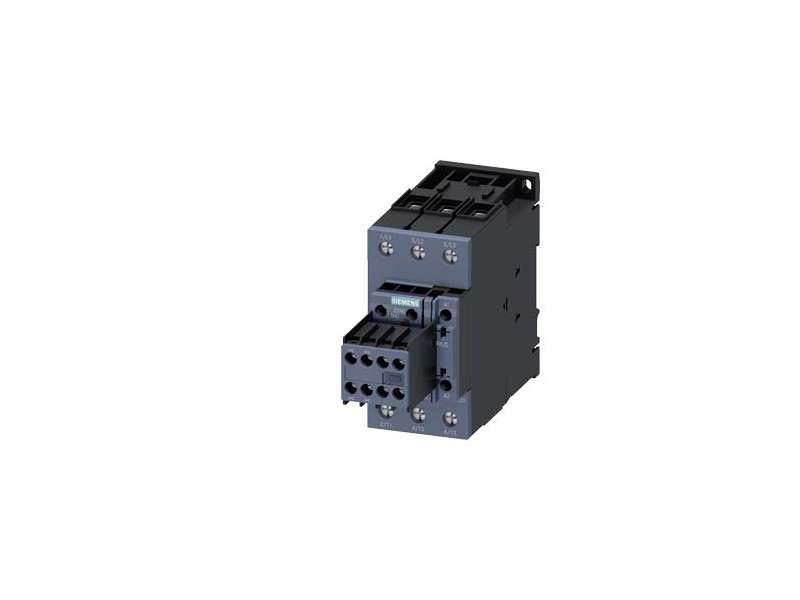

SIEMENS KONTAKTOR 3RT2036-1AG24 50A 110VAC 1O+1C
The 3RT2036-1AG24 is a three-phase industrial contactor designed to control motors up to 22 kW at 400 V in AC-3 operation. It features 1 NO + 1 NC contacts,...
VAT-exclusive price: 10.825,29 |
VAT-inclusive price: 12.990,35 |
The 3RT2036-1AG24 is a three-phase industrial contactor designed to control motors up to 22 kW at 400 V in AC-3 operation. It features 1 NO + 1 NC contacts, a 110 V AC coil (50/60 Hz), and a rated current of 50 A. With Size S2 housing and screw terminals, it is ideal for diverse industrial automation applications.
| Product Specification | |
|---|---|
| Product Name | 3RT2036-1AG24 |
| Type | Power Contactor |
| Rated Current (AC-3) | 50 A |
| Motor Power | 22 kW @ 400 V |
| Contact Configuration | 1 NO + 1 NC |
| Coil Voltage | 110 V AC, 50 / 60 Hz |
| Number of Poles | 3 |
| Size | S2 |
| Terminal Type | Screw terminals |
| Weight | 1.10 kg |
