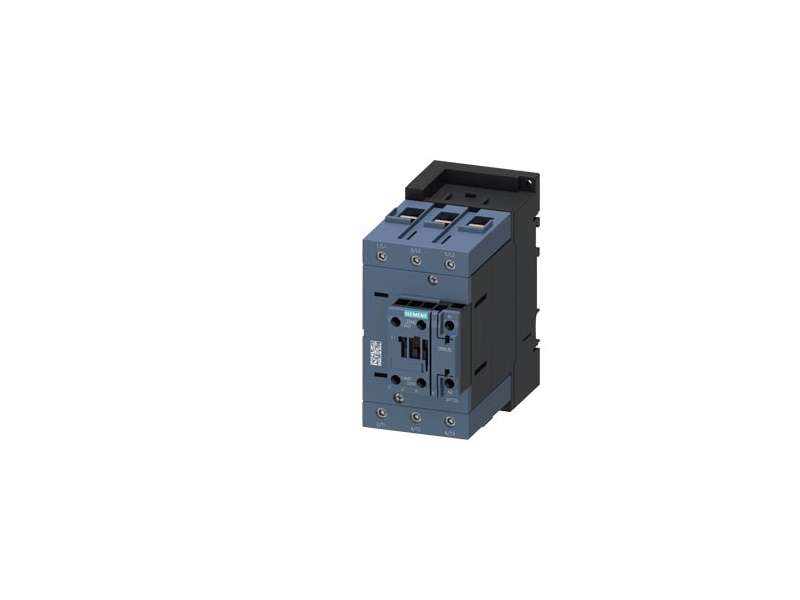

SIEMENS KONTAKTOR 3RT2046-1AG20 95A 110VAC 1O+1C

SIEMENS KONTAKTOR 3RT2046-1AG20 95A 110VAC 1O+1C

The 3RT2046-1AG20 contactor is a robust industrial-grade solution for three-phase motor control up to 45 kW at 400 V. Designed for AC-3 applications with a rated...

Brand: SIEMENS
Product Code: 3RT2046-1AG20
Availability: Check availability
VAT-exclusive price: 21.268,69
VAT-inclusive price: 25.522,43

The 3RT2046-1AG20 contactor is a robust industrial-grade solution for three-phase motor control up to 45 kW at 400 V. Designed for AC-3 applications with a rated current of 95 A. Operates at 110 V AC (50/60 Hz) and includes 1 NO + 1 NC auxiliary contacts. Compact S3 size with reliable screw terminal connections.


Product Specification
Product Name3RT2046-1AG20
TypePower Contactor
Rated Current (AC-3)95 A
Motor Power45 kW @ 400 V
Auxiliary Contacts1 NO + 1 NC
Control Voltage110 V AC / 50/60 Hz
Main Poles3 NO
SizeS3
Terminal TypeScrew terminals
Weight2.70 kg
