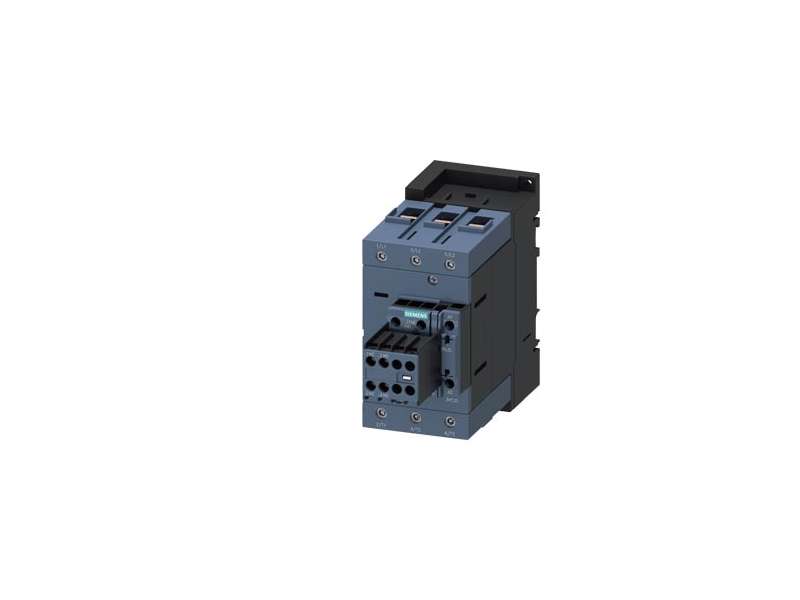

SIEMENS KONTAKTOR 3RT2046-1AN24 95A 220VAC 2O+2C
The 3RT2046-1AN24 is a heavy-duty three-phase power contactor designed to control motors up to 45 kW at 400 V under AC-3 utilization category. It operates on 220...
VAT-exclusive price: 22.389,42 |
VAT-inclusive price: 26.867,31 |
The 3RT2046-1AN24 is a heavy-duty three-phase power contactor designed to control motors up to 45 kW at 400 V under AC-3 utilization category. It operates on 220 V AC control voltage (50/60 Hz), and features 2 NO + 2 NC auxiliary contacts with 3 main NO poles. Size S3, equipped with screw terminals for reliable connection. Ideal for demanding industrial automation.
| Product Specification | |
|---|---|
| Product Name | 3RT2046-1AN24 |
| Type | Power Contactor |
| Rated Current (AC-3) | 95 A |
| Motor Power | 45 kW @ 400 V |
| Auxiliary Contacts | 2 NO + 2 NC |
| Control Voltage | 220 V AC / 50/60 Hz |
| Main Poles | 3 NO |
| Size | S3 |
| Terminal Type | Screw terminals |
| Weight | 2.70 kg |
