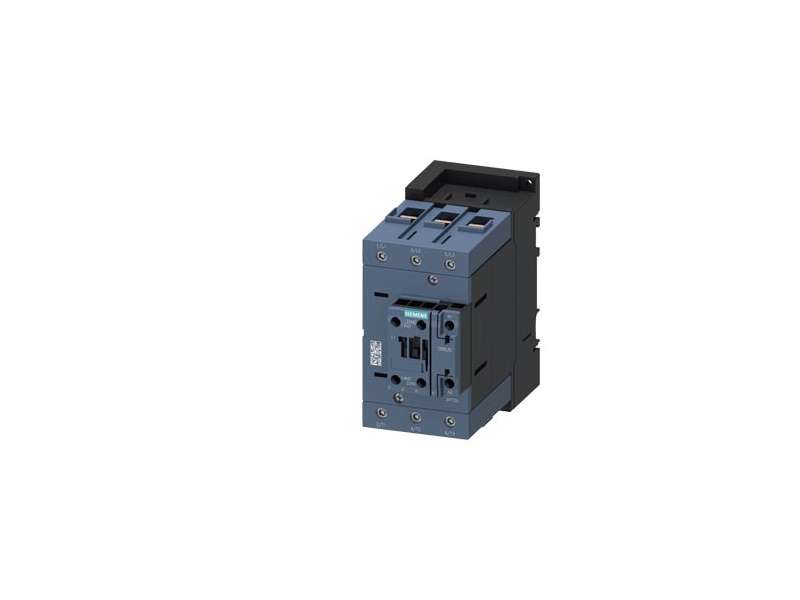

SIEMENS KONTAKTOR 3RT2046-1AL20 95A 230VAC 1O+1C

SIEMENS KONTAKTOR 3RT2046-1AL20 95A 230VAC 1O+1C

The 3RT2046-1AL20 is a heavy-duty industrial contactor designed for controlling three-phase motors up to 45 kW at 400 V. Operates under AC-3 duty with a rated current...

Brand: SIEMENS
Product Code: 3RT2046-1AL20
Availability: Check availability
VAT-exclusive price: 21.268,69
VAT-inclusive price: 25.522,43

The 3RT2046-1AL20 is a heavy-duty industrial contactor designed for controlling three-phase motors up to 45 kW at 400 V. Operates under AC-3 duty with a rated current of 95 A and control voltage of 230 V AC (50/60 Hz). It features 1 NO + 1 NC auxiliary contacts and 3 main NO poles, with secure screw terminals. Perfect for industrial automation applications.


Product Specification
Product Name3RT2046-1AL20
TypePower Contactor
Rated Current (AC-3)95 A
Motor Power45 kW @ 400 V
Auxiliary Contacts1 NO + 1 NC
Control Voltage230 V AC / 50/60 Hz
Main Poles3 NO
SizeS3
Terminal TypeScrew terminals
Weight2.70 kg
