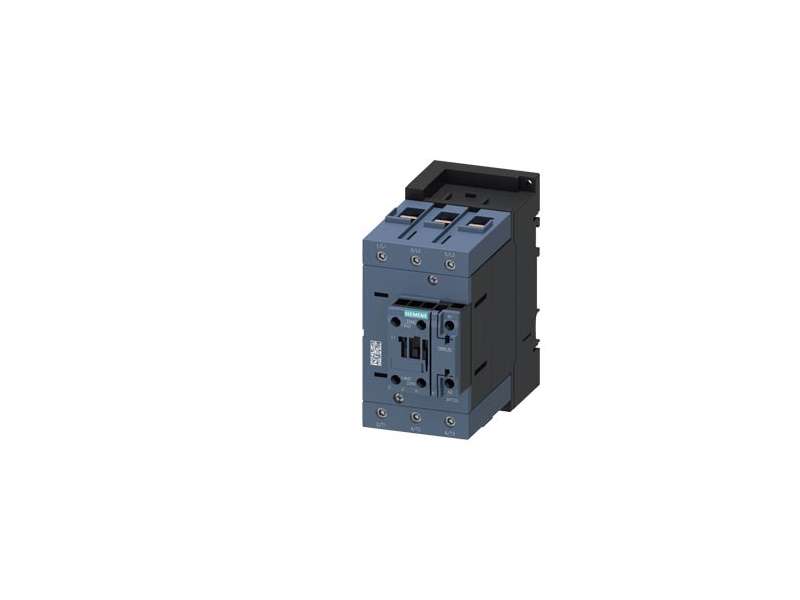

SIEMENS KONTAKTOR 3RT2047-1AG20 110A 110VAC
The 3RT2047-1AG20 contactor is designed for controlling three-phase motors up to 55 kW at 400 V in AC-3 operation. It operates at a control voltage of 110 V AC /...
VAT-exclusive price: 24.637,63 |
VAT-inclusive price: 29.565,16 |
The 3RT2047-1AG20 contactor is designed for controlling three-phase motors up to 55 kW at 400 V in AC-3 operation. It operates at a control voltage of 110 V AC / 50 Hz. Equipped with 1 NO + 1 NC auxiliary contact and 3 main NO poles. Classified as Size S3, this contactor features screw terminals for secure connections, making it ideal for industrial applications requiring durability and high reliability.
| Product Specification | |
|---|---|
| Product Name | 3RT2047-1AG20 |
| Type | Power Contactor |
| Rated Current (AC-3) | 110 A |
| Motor Power | 55 kW @ 400 V |
| Auxiliary Contacts | 1 NO + 1 NC |
| Control Voltage | 110 V AC / 50 Hz |
| Main Poles | 3 NO |
| Size | S3 |
| Terminal Type | Screw terminals |
| Weight | 3.30 kg |
