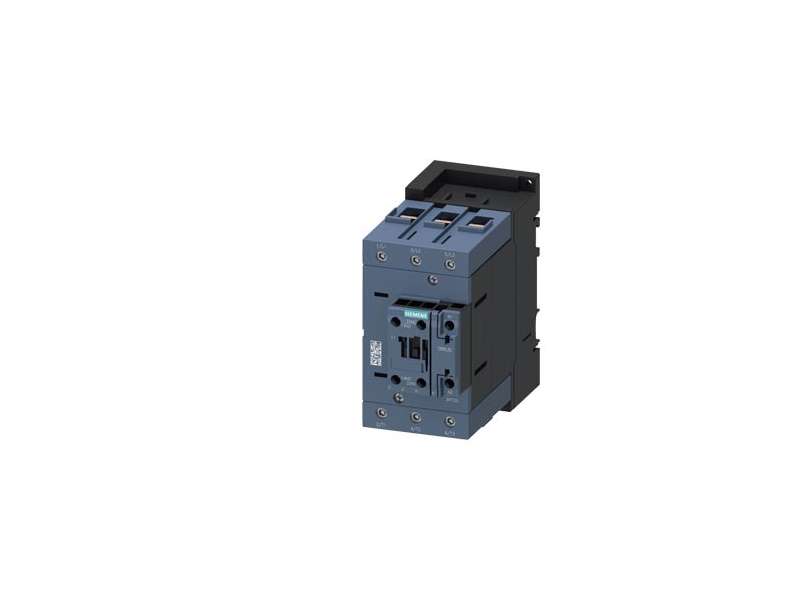

SIEMENS KONTAKTOR 3RT2047-1AP00 115A 230VAC
The 3RT2047-1AP00 contactor is intended for controlling three-phase motors up to 55 kW at 400 V in AC-3 operation. Control voltage is 230 V AC at 50 Hz. It features...
VAT-exclusive price: 24.637,63 |
VAT-inclusive price: 29.565,16 |
The 3RT2047-1AP00 contactor is intended for controlling three-phase motors up to 55 kW at 400 V in AC-3 operation. Control voltage is 230 V AC at 50 Hz. It features 1 NO + 1 NC auxiliary contact and 3 main NO poles. Designed for industrial use, this contactor has screw terminals and belongs to Size S3.
| Product Specification | |
|---|---|
| Product Name | 3RT2047-1AP00 |
| Type | Power Contactor |
| Rated Current (AC-3) | 115 A |
| Motor Power | 55 kW @ 400 V |
| Auxiliary Contacts | 1 NO + 1 NC |
| Control Voltage | 230 V AC / 50 Hz |
| Main Poles | 3 NO |
| Size | S3 |
| Terminal Type | Screw terminals |
| Weight | 3.30 kg |
