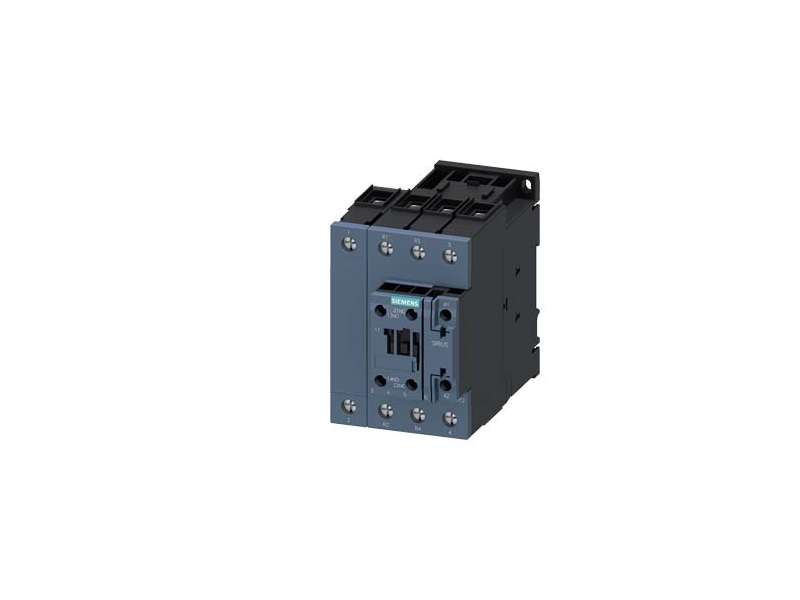

SIEMENS KONTAKTOR 3RT2536-1AH20 50A 48VAC 2O+2C
The 3RT2536-1AH20 is a 4-pole industrial power contactor, size S2, designed for AC-3 applications up to 50 A and 22 kW at 400 V. It operates on 48 V AC (50/60 Hz)...
VAT-exclusive price: 13.031,99 |
VAT-inclusive price: 15.638,38 |
The 3RT2536-1AH20 is a 4-pole industrial power contactor, size S2, designed for AC-3 applications up to 50 A and 22 kW at 400 V. It operates on 48 V AC (50/60 Hz) and features 2 NO + 2 NC main contacts, along with integrated auxiliary contacts (1 NO + 1 NC). Equipped with screw terminals, it ensures secure installation in industrial control cabinets.
| Product Specification | |
|---|---|
| Product Name | 3RT2536-1AH20 |
| Contactor Type | Power Contactor |
| Rated Current (AC-3) | 50 A |
| Motor Power | 22 kW / 400 V |
| Control Voltage | 48 V AC / 50/60 Hz |
| Main Contacts | 2 NO + 2 NC |
| Auxiliary Contacts | 1 NO + 1 NC (integrated) |
| Number of Poles | 4 |
| Size | S2 |
| Terminal Type | Screw terminals |
| Weight | 0.80 kg |
