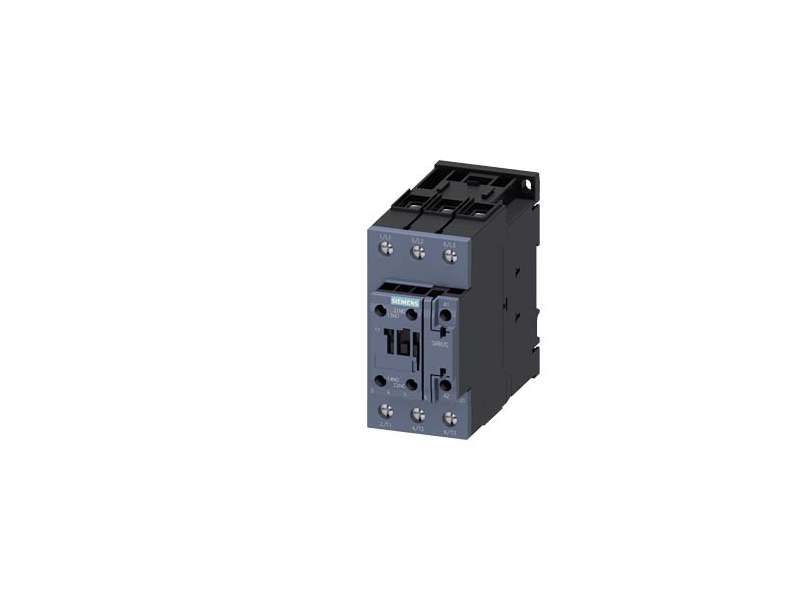

SIEMENS KONTAKTOR 3RT2037-1AC20 65A 24VAC 1O+1C
The 3RT2037-1AC20 is a robust three-phase power contactor, Size S2, engineered for reliable motor control up to 30 kW at 400 V in AC-3 applications. It features...
VAT-exclusive price: 14.158,93 |
VAT-inclusive price: 16.990,72 |
The 3RT2037-1AC20 is a robust three-phase power contactor, Size S2, engineered for reliable motor control up to 30 kW at 400 V in AC-3 applications. It features 1 NO + 1 NC contacts, a 24 V AC coil suitable for 50/60 Hz, and a rated current of 65 A. Equipped with screw terminals, it is ideal for industrial applications.
| Product Specification | |
|---|---|
| Product Name | 3RT2037-1AC20 |
| Type | Power Contactor |
| Rated Current (AC-3) | 65 A |
| Motor Power | 30 kW @ 400 V |
| Contact Configuration | 1 NO + 1 NC |
| Coil Voltage | 24 V AC, 50/60 Hz |
| Number of Poles | 3 |
| Size | S2 |
| Terminal Type | Screw terminals |
| Weight | 1.60 kg |
