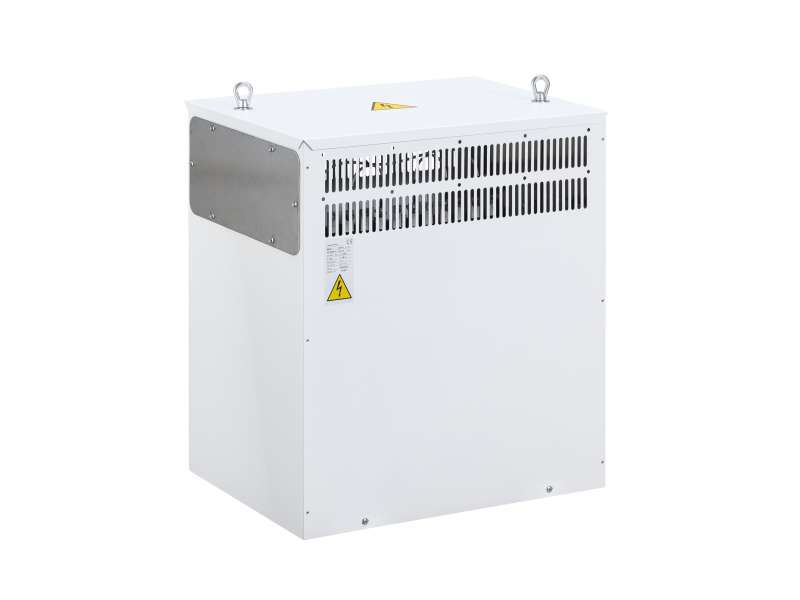

Schneider Electric BC Imprego 3-phase power transformer 400/400 V 25kVA IP21; 84239

Schneider Electric BC Imprego 3-phase power transformer 400/400 V 25kVA IP21; 84239

BC Imprego 3-phase power transformer 400/400 V 25kVA IP21; 84239...

Brand: Schneider Electric
Šifra: 84239
Dostupnost: Proveriti dostupnost
Cena na upit
BC Imprego 3-phase power transformer 400/400 V 25kVA IP21; 84239
Main
Range of product BC Imprego
Product or component type Dry type transformer
Network type AC
Type of installation Indoor

Complementary
Type of cooling AN (air natural)
rated power 25 kVA
Network frequency 50/60 Hz
thermal class Class H
phase description 3 phases
Primary voltage 400 V
isolation level 1.1 kV primary
1.1 kV secondary
[Ui] rated insulation voltage Primary circuit: 1.1 kV AC
Secondary circuit: 1.1 kV AC
secondary voltage Off load: 400 V
Vector group Dyn11
temperature rise 125 K (winding)
impedance voltage 2.9 %
no-load losses 290 W
load losses 620 W
Operating altitude < 1000 m
winding material Aluminium
Temperature class H
insulation material Impregnated (LV)
Mounting mode Fixed
IP degree of protection IP21
IK degree of protection IK07
Colour code RAL 9003
Net weight 152 kg
height 520 mm
width 460 mm
length 530 mm
sound power level 65 dB at 1 m
  • BC Imprego 84239

    BC Imprego 84239

  • FRAED203709EN BC Imprego

    FRAED203709EN BC Imprego
