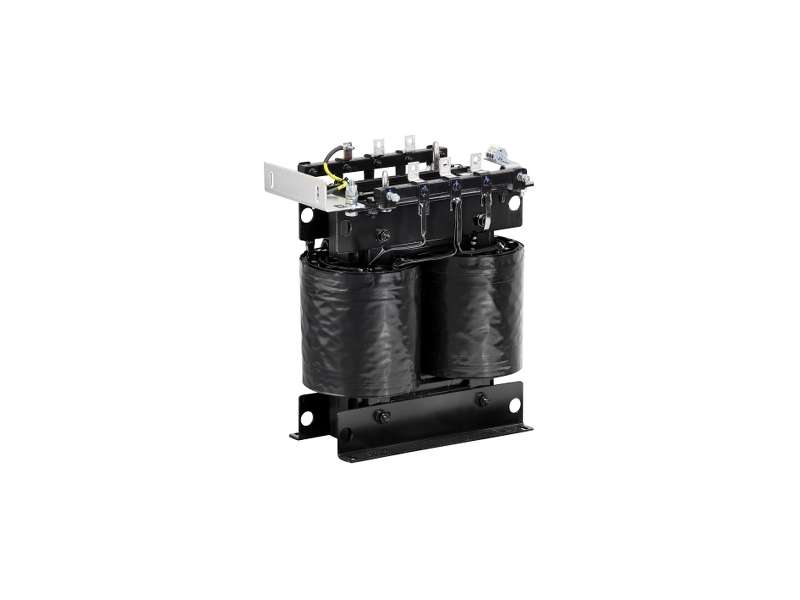

Schneider Electric Transformer, Imprego, IEC, dry type, sing phase, 10kVA, LV, LV, IP00; 84410

Transformer, Imprego, IEC, dry type, sing phase, 10kVA, LV, LV, IP00...

Brand: Schneider Electric
Šifra: 84410
Dostupnost: Proveriti dostupnost

Cena na upit

Opis
Specifikacija

Transformer, Imprego, IEC, dry type, sing phase, 10kVA, LV, LV, IP00

Main
Range of product	BC Imprego
Product or component type	Dry type transformer
Network type	AC
Type of installation	Indoor

Complementary
Type of cooling	AN (air natural)
rated power	10 kVA
Network frequency	50/60 Hz
thermal class	Class F
phase description	1 phase
Primary voltage	230 V
isolation level	1.1 kV primary 1.1 kV secondary
[Ui] rated insulation voltage	Primary circuit: 1.1 kV AC Secondary circuit: 1.1 kV AC
secondary voltage	With middle point: 230 V
Vector group	Li00
temperature rise	100 K (winding)
impedance voltage	2.8 %
no-load losses	90 W
load losses	280 W
Operating altitude	< 1000 m
winding material	Aluminium
Temperature class	H
insulation material	Impregnated (LV)
Mounting mode	Fixed
IP degree of protection	IP00
Net weight	80 kg
height	520 mm
width	262 mm
length	405 mm
sound power level	65 dB at 1 m
protection device	Vigitherm

Environment
ambient air temperature for operation	-25…40 °C for C4
ambient air temperature for storage	-25…50 °C C2
environmental certification	0…93 % (E2)
fire certificate	F1
Atmospheric-corrosivity category	C3
Standards	EN/IEC 61558-2-15

Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	58.000 cm
Package 1 Width	58.500 cm
Package 1 Length	80.000 cm
Package 1 Weight	75.000 kg

Contractual warranty
Warranty	18 months
