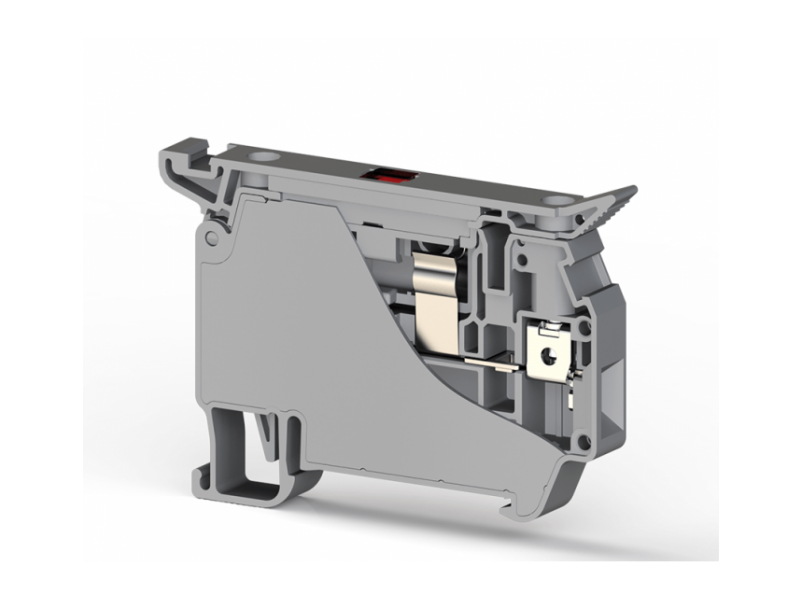

Klemsan ASK 5 LD 4mm2, Screw connection, Fuse terminal block (5x50-25) with 220V LED, Insulation material PA, Grey; 353439
Reliable 4mm² fuse terminal block with screw connection and 220V LED indicator. Supports 5x50-25 fuses. Made of durable PA insulation. Color: grey. Model: ...
VAT-exclusive price: 261,80 |
VAT-inclusive price: 314,16 |
Reliable 4mm² fuse terminal block with screw connection and 220V LED indicator. Supports 5x50-25 fuses. Made of durable PA insulation. Color: grey. Model: 353439.
| General Product Information | |
|---|---|
| Insulating material | PA |
| Flammability class acc. to UL 94 | V2 |
| Packing Unit | 50 |
| Weight (g) | --- |
| Dimensions | |
| Width | 8 mm |
| Length | 58.50 mm |
| Height (MR 32) | 69.60 mm |
| Height (MR 35x7.5) | 51 mm |
| TSE / CE Technical Data | |
| Nominal Voltage | --- V ~ |
| Nominal Current | 10 A |
| Cross Section | 4 mm² |
| Norm | EN 60947-7-1 |
| VDE Technical Data | |
| Nominal Voltage | --- V ~ |
| Nominal Current | 10 A |
| Cross Section | 4 mm² |
| VDE Norm | EN 60947-7-2 |
| UL / CSA Technical Data | |
| Nominal Voltage | --- V ~ |
| Nominal Current | 10 A |
| Cross Section | 4 |
| ATEX Technical Data | |
| Nominal Voltage | --- V ~ |
| Nominal Current | 10 A |
| Cross Section | 4 |
| Connection Data | |
| Minimum solid strand cross section | 0.5 mm² |
| Maximum solid strand cross section | 6 mm² |
| Minimum fine strand cross section | 0.5 mm² |
| Maximum fine strand cross section | 6 mm² |
| AWG Conductor Range | 26-10 |
| Connection Type | screw/vidalı |
| Insulation Stripping length | 9 mm |
| Tightening torque | 0.5/1 Nm |
