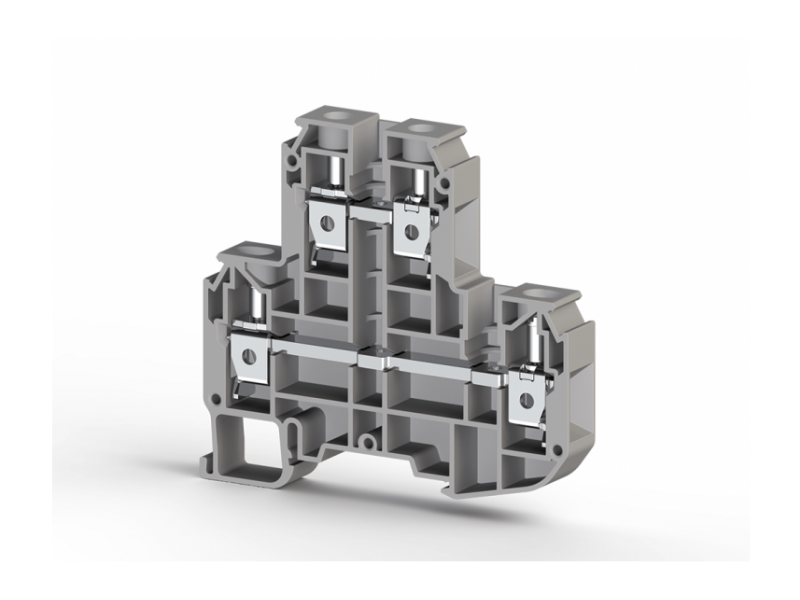

Klemsan Dvospratna redna stezaljka PIK N 10mm² ; 319909
Double-deck screw terminal block, made from durable PA insulating material. Designed for conductors with a cross-section up to 10mm². It supports a nominal...
VAT-exclusive price: 257,93 |
VAT-inclusive price: 309,52 |
Double-deck screw terminal block, made from durable PA insulating material. Designed for conductors with a cross-section up to 10mm². It supports a nominal current of 57A and a maximum allowable voltage of 800V. Available in grey and beige colors, ensuring secure and reliable connections for various electrical applications.
| General Product Information | Insulating material | PA |
|---|---|---|
| Inflammability class acc. to UL 94 | V2 | |
| Packing Unit | 20 | |
| Weight (g) | --- | |
| Dimensions | Width | 10 mm |
| Length | 77.90 mm | |
| Height (MR 32) | --- | |
| Height (MR 35x7.5) | 73.00 mm | |
| TSE / CE Technical Data | Nominal Voltage | 800 V ~ |
| Nominal Current | 57 A | |
| Cross Section | 10 mm² | |
| Norm | EN 60947-7-1 | |
| VDE Technical Data | Nominal Voltage | --- |
| Nominal Current | --- | |
| Cross Section | 10 mm² | |
| VDE Norm | --- | |
| UL / CSA Technical Data | Nominal Voltage | --- |
| Nominal Current | --- | |
| Cross Section | 10 | |
| ATEX Technical Data | Nominal Voltage | --- |
| Nominal Current | --- | |
| Cross Section | 10 | |
| Connection Data | Minimum solid strand cross section | 1.5 mm² |
| Maximum solid strand cross section | 16 mm² | |
| Minimum fine strand cross section | 1.5 mm² | |
| Maximum fine strand cross section | 16 mm² | |
| AWG Conductor Range | 18-6 | |
| Connection Type | screw/vidalı | |
| Insulation Stripping length | 12 mm | |
| Tightening torque | 1.2/1.8 Nm |
