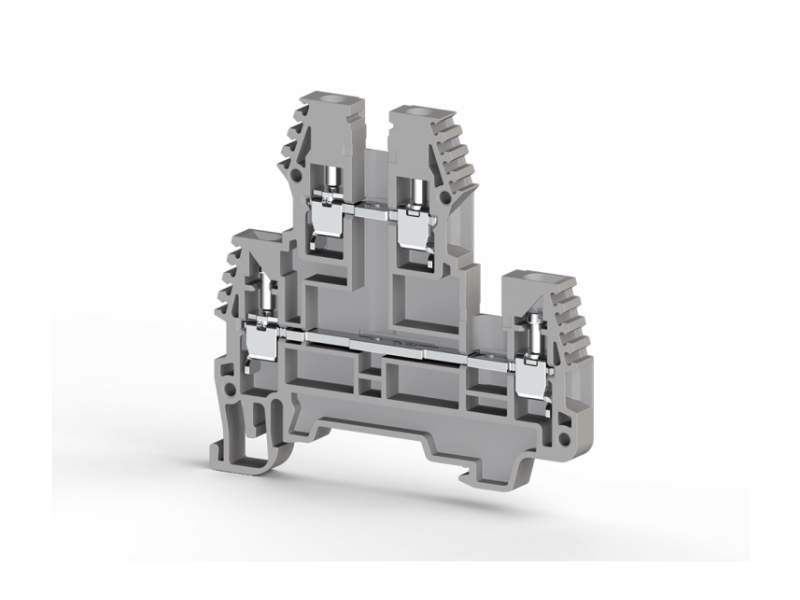

Klemsan Dvospratna redna stezaljka PIK N 2.5mm² ; 317109
Dual-level screw terminal block made from durable PA insulating material. Designed for conductors up to 2.5mm². Supports a nominal current of 24A and a maximum...
VAT-exclusive price: 93,34 |
VAT-inclusive price: 112,01 |
Dual-level screw terminal block made from durable PA insulating material. Designed for conductors up to 2.5mm². Supports a nominal current of 24A and a maximum voltage of 500V. Available in grey and beige. Ideal for compact DIN rail installations and industrial control panels.
| General Product Information | Insulating material | PA |
|---|---|---|
| Inflammability class acc. to UL 94 | V2 | |
| Packing Unit | 100 | |
| Weight (g) | --- | |
| Dimensions | Width | 5 mm |
| Length | 64 mm | |
| Height (MR 32) | --- | |
| Height (MR 35x7.5) | 61.3 mm | |
| TSE / CE Technical Data | Nominal Voltage | 500 V ~ |
| Nominal Current | 24 A | |
| Cross Section | 2.5 mm² | |
| Norm | EN 60947-7-1 | |
| VDE Technical Data | Nominal Voltage | --- |
| Nominal Current | --- | |
| Cross Section | --- | |
| VDE Norm | --- | |
| UL / CSA Technical Data | Nominal Voltage | 300 V ~ |
| Nominal Current | 20 A | |
| Cross Section | 26-12 | |
| ATEX Technical Data | Nominal Voltage | 400 V ~ |
| Nominal Current | 21.5 A | |
| Cross Section | --- | |
| Connection Data | Minimum solid strand cross section | 0.5 mm² |
| Maximum solid strand cross section | 4 mm² | |
| Minimum fine strand cross section | 0.5 mm² | |
| Maximum fine strand cross section | 4 mm² | |
| AWG Conductor Range | 26-12 | |
| Connection Type | screw/vidalı | |
| Insulation Stripping length | 12 mm | |
| Tightening torque | 0.4 Nm |
