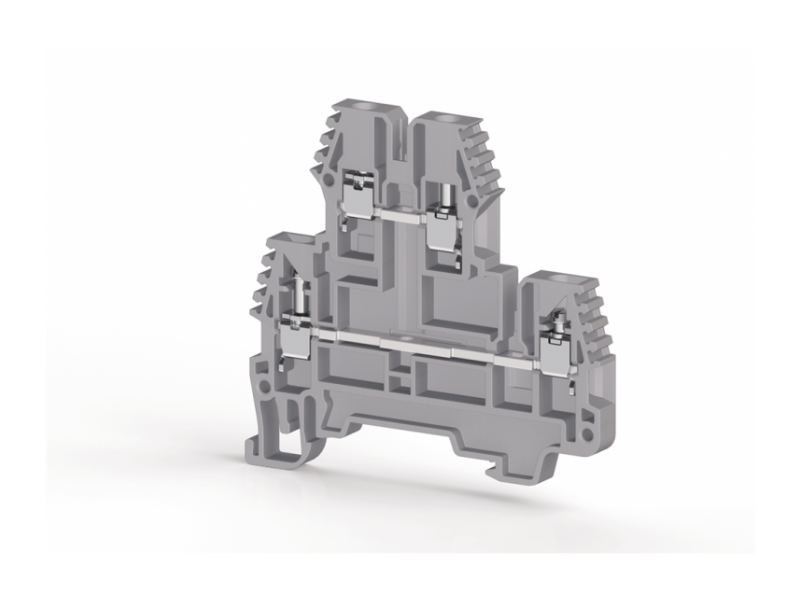

Klemsan 2,5mm2,screw type,1 input 1 output double deck terminal block,Insulation material PA,Grey; 325249
Compact screw-type double deck terminal block with 1 input and 1 output connection, designed for 2.5mm² conductors. Made from durable PA insulating material...
VAT-exclusive price: 94,29 |
VAT-inclusive price: 113,15 |
Compact screw-type double deck terminal block with 1 input and 1 output connection, designed for 2.5mm² conductors. Made from durable PA insulating material and available in grey. Ideal for DIN rail mounting, control panels, and industrial automation systems. Product code: 325249.
| General Product Information | Insulating material | PA |
|---|---|---|
| Inflammability class acc. to UL 94 | V2 | |
| Packing Unit | 100 | |
| Weight (g) | --- | |
| Dimensions | Width | 5 mm |
| Length | 64 mm | |
| Height (MR 32) | 68.70 mm | |
| Height (MR 35x7.5) | 61.20 mm | |
| TSE / CE Technical Data | Nominal Voltage | 500 V ~ |
| Nominal Current | 24 A | |
| Cross Section | 2.5 mm² | |
| Norm | EN 60947-7-1 | |
| VDE Technical Data | Nominal Voltage | --- |
| Nominal Current | --- | |
| Cross Section | --- | |
| VDE Norm | --- | |
| UL / CSA Technical Data | Nominal Voltage | 500 V ~ |
| Nominal Current | 24 A | |
| Cross Section | --- | |
| ATEX Technical Data | Nominal Voltage | --- |
| Nominal Current | --- | |
| Cross Section | --- | |
| Connection Data | Minimum solid strand cross section | 0.2 mm² |
| Maximum solid strand cross section | 4 mm² | |
| Minimum fine strand cross section | 0.2 mm² | |
| Maximum fine strand cross section | 4 mm² | |
| AWG Conductor Range | 24 | |
| Connection Type | screw/vidalı | |
| Insulation Stripping length | --- | |
| Tightening torque | --- |
