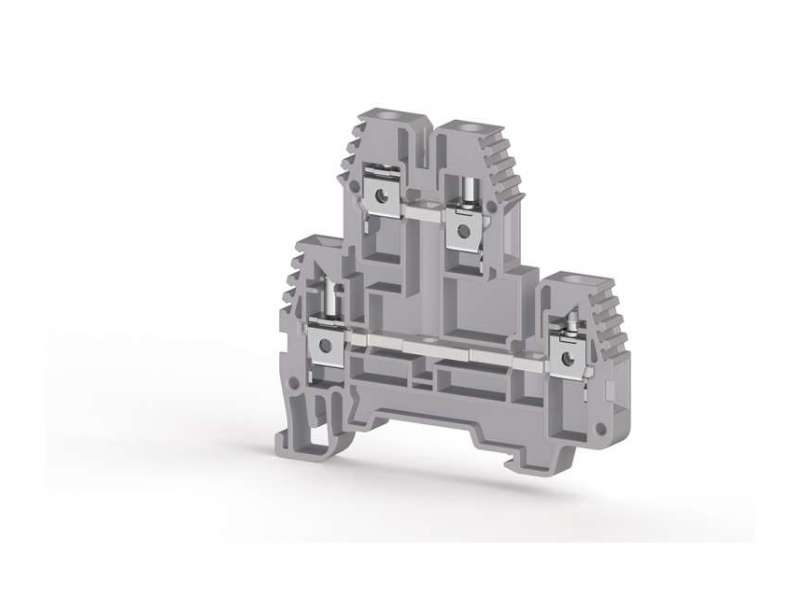

Klemsan 4 mm2, Screw connection, Double-level 1 In 1 Out terminal block, Insulation material PA, Grey; 325349

Klemsan 4mm² double-level terminal block with 1 input and 1 output. Screw connection type, made of durable PA insulating material, in grey color. Designed for...

Brand: Klemsan
Product Code: 325349
Availability: In stock

VAT-exclusive price: 110,70

VAT-inclusive price: 132,84

Qnt:

Description
Specification

Klemsan 4mm² double-level terminal block with 1 input and 1 output. Screw connection type, made of durable PA insulating material, in grey color. Designed for DIN rail mounting, ideal for compact control panels and industrial automation. Product code: 325349.

General Product Information	Insulating material	PA
Inflammability class acc. to UL 94	V2
Packing Unit	100
Weight (g)	---
Dimensions	Width	6.00 mm
Length	64.00 mm
Height (MR 32)	61.20 mm
Height (MR 35x7.5)	61.20 mm
TSE / CE Technical Data	Nominal Voltage	500 V ~
Nominal Current	32 A (4 mm²)
Cross Section	---
Norm	---
VDE Technical Data	Nominal Voltage	---
Nominal Current	---
Cross Section	---
VDE Norm	---
UL / CSA Technical Data	Nominal Voltage	---
Nominal Current	---
Cross Section	---
ATEX Technical Data	Nominal Voltage	---
Nominal Current	---
Cross Section	---
Connection Data	Minimum solid strand cross section	0.2 mm²
Maximum solid strand cross section	6 mm²
Minimum fine strand cross section	---
Maximum fine strand cross section	---
AWG Conductor Range	24 AWG
Connection Type	screw/vidalı
Insulation Stripping length	---
Tightening torque	0.5 Nm
