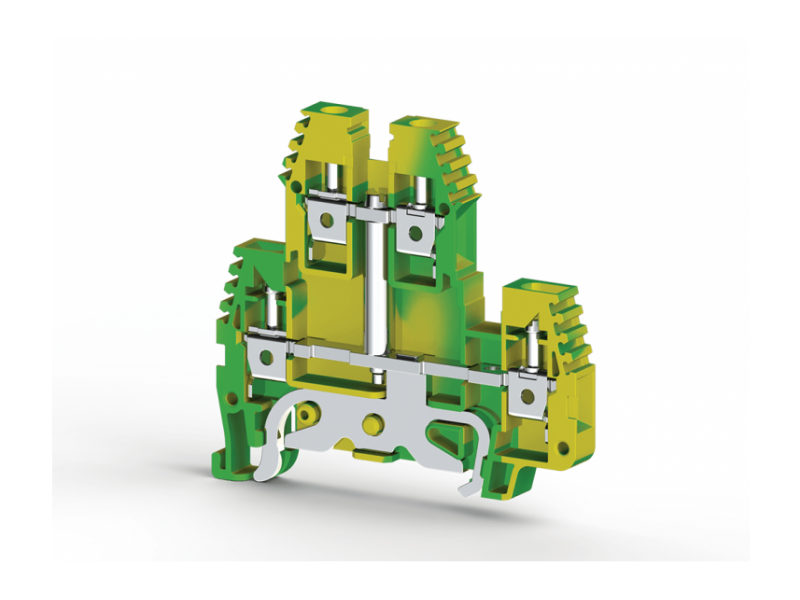

Klemsan Dvospratna redna stezaljka za provodnike uzemljenja PIK NT 4mm² ; 336570
Double-deck screw terminal block for grounding conductors, made from durable PA insulating material. Designed for conductors with a cross-section up to 4mm²....
VAT-exclusive price: 547,88 |
VAT-inclusive price: 657,45 |
Double-deck screw terminal block for grounding conductors, made from durable PA insulating material. Designed for conductors with a cross-section up to 4mm². Available in yellow-green color, ensuring secure and reliable connections for grounding applications.
| General Product Information | Insulating material | PA |
|---|---|---|
| Inflammability class acc. to UL 94 | V2 | |
| Packing Unit | 100 | |
| Weight (g) | --- | |
| Dimensions | Width | 6 mm |
| Length | 64.00 mm | |
| Height (MR 32) | --- | |
| Height (MR 35x7.5) | 61.30 mm | |
| TSE / CE Technical Data | Nominal Voltage | --- |
| Nominal Current | --- | |
| Cross Section | 4 mm² | |
| Norm | EN 60947-7-1 | |
| VDE Technical Data | Nominal Voltage | --- |
| Nominal Current | --- | |
| Cross Section | 4 mm² | |
| VDE Norm | --- | |
| UL / CSA Technical Data | Nominal Voltage | --- |
| Nominal Current | --- | |
| Cross Section | 4 | |
| ATEX Technical Data | Nominal Voltage | --- |
| Nominal Current | --- | |
| Cross Section | 4 | |
| Connection Data | Minimum solid strand cross section | 0.5 mm² |
| Maximum solid strand cross section | 6 mm² | |
| Minimum fine strand cross section | 0.5 mm² | |
| Maximum fine strand cross section | 6 mm² | |
| AWG Conductor Range | 26-10 | |
| Connection Type | screw/vidalı | |
| Insulation Stripping length | 10 mm | |
| Tightening torque | 0.5/0.8 Nm |
