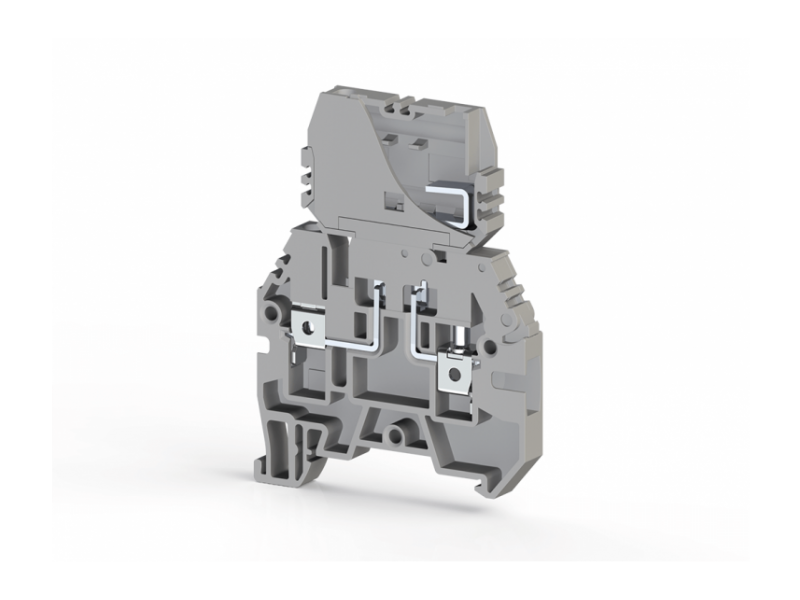

Klemsan Jednostruka redna stezaljka za osigurač sa diskonekcionim terminalom ASK 3F 4mm²; 354109
Single-level fuse terminal block with integrated disconnect terminal. Designed for conductors with a cross-section up to 4 mm². Supports a nominal current of...
VAT-exclusive price: 231,02 |
VAT-inclusive price: 277,22 |
Single-level fuse terminal block with integrated disconnect terminal. Designed for conductors with a cross-section up to 4 mm². Supports a nominal current of up to 10 A and a maximum voltage of 500 V. Made from high-quality, durable PA insulating material and compliant with relevant standards. Available in grey and beige. Ideal for reliable protection and easy disconnection in electrical panels and industrial installations.
| General Product Information | |
|---|---|
| Insulating material | PA |
| Inflammability class acc. to UL 94 | V2 |
| Packing Unit | 30 |
| Weight (g) | --- |
| Dimensions | |
| Width | 6 mm |
| Length | 53.5 mm |
| Height (MR 32) | --- mm |
| Height (MR 35x7.5) | 65.0 mm |
| TSE / CE Technical Data | |
| Nominal Voltage | 500 V ~ |
| Nominal Current | 10 A |
| Cross Section | 4 mm² |
| Norm | EN60947-7-1 |
| VDE Technical Data | |
| Nominal Voltage | --- V ~ |
| Nominal Current | --- A |
| Cross Section | 4 mm² |
| VDE Norm | --- |
| UL / CSA Technical Data | |
| Nominal Voltage | 600 V ~ |
| Nominal Current | 10 A |
| Cross Section | 4 |
| ATEX Technical Data | |
| Nominal Voltage | --- V ~ |
| Nominal Current | --- A |
| Cross Section | 4 |
| Connection Data | |
| Minimum solid strand cross section | 0.5 mm² |
| Maximum solid strand cross section | 6 mm² |
| Minimum fine strand cross section | 1.5 mm² |
| Maximum fine strand cross section | 4 mm² |
| AWG Conductor Range | 26-10 |
| Connection Type | screw/vidalı |
| Insulation Stripping length | 12 mm |
| Tightening torque | 0.5 Nm |
