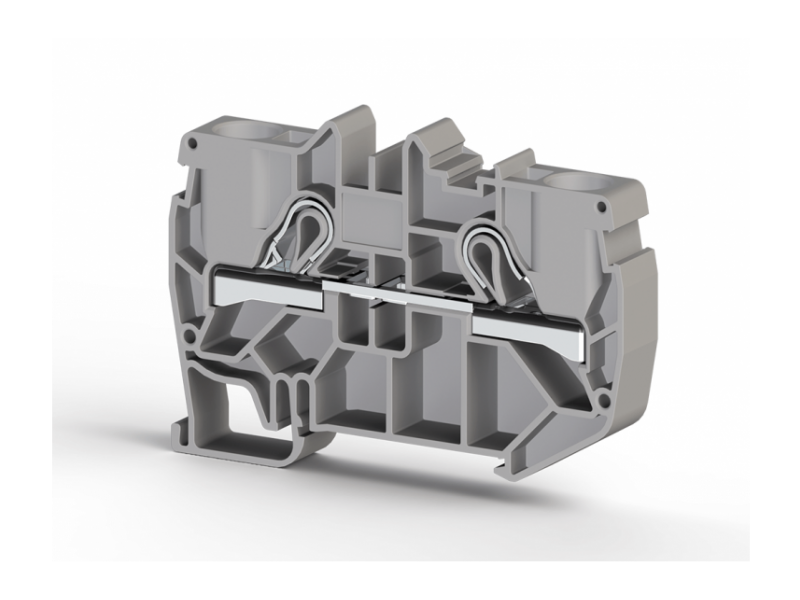

Klemsan Standardna utična redna stezaljka PYK 6 6mm2 Siva; 307129
The PYK 6 is a standard push-in terminal block featuring one input and one output terminal. Designed for conductors with cross-sections up to 6 mm², it supports...
VAT-exclusive price: 112,41 |
VAT-inclusive price: 134,90 |
The PYK 6 is a standard push-in terminal block featuring one input and one output terminal. Designed for conductors with cross-sections up to 6 mm², it supports a nominal current of 41 A and a maximum voltage of 800 V. Made from high-quality PA material, it ensures durability, safety, and ease of installation. Available in grey.
| General Product Information | |
|---|---|
| Insulating material | PA |
| Flammability class acc. to UL 94 | V2 |
| Packing Unit | 60 |
| Weight (g) | --- |
| Dimensions | |
| Width | 8 mm |
| Length | 65.60 mm |
| Height (MR 32) | --- mm |
| Height (MR 35x7.5) | 46.2 mm |
| TSE / CE Technical Data | |
| Nominal Voltage | 800 V ~ |
| Nominal Current | 41 A |
| Cross Section | 6 mm² |
| Standard | EN 60947-7-1 |
| VDE Technical Data | |
| Nominal Voltage | --- V ~ |
| Nominal Current | --- A |
| Cross Section | 6 mm² |
| VDE Standard | --- |
| UL / CSA Technical Data | |
| Nominal Voltage | 600 V ~ |
| Nominal Current | 45 A |
| Cross Section | 6 |
| ATEX Technical Data | |
| Nominal Voltage | 800 V ~ |
| Nominal Current | 41 A |
| Cross Section | 6 |
| Connection Data | |
| Minimum solid strand cross section | 0.5 mm² |
| Maximum solid strand cross section | 10 mm² |
| Minimum fine strand cross section | 0.5 mm² |
| Maximum fine strand cross section | 10 mm² |
| AWG Conductor Range | 20-8 |
| Connection Type | practical spring, push-in / pratik yay baskılı |
| Insulation Stripping Length | 13 mm |
| Tightening Torque | |
