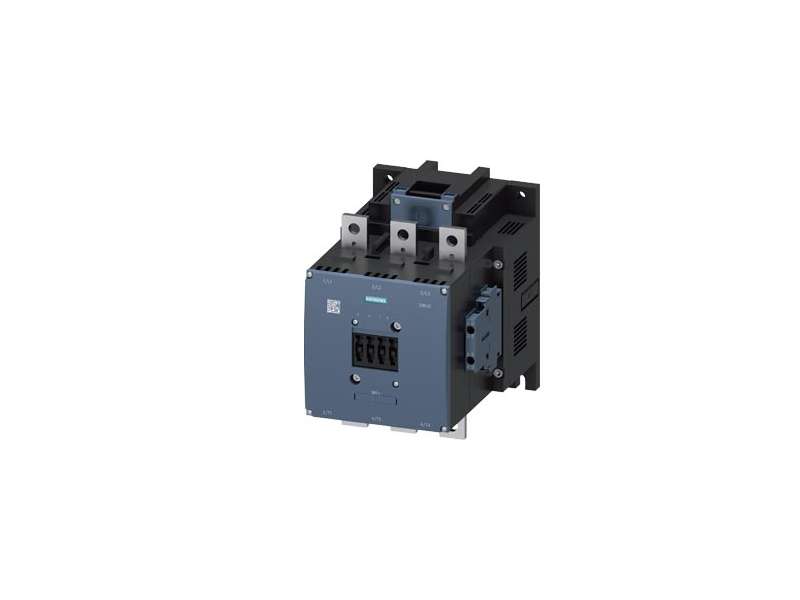

SIEMENS Kontaktor 3RT1076-6AP36
The Siemens 3RT1076-6AP36 is a heavy-duty AC-3 motor contactor from the 3RT1 series, size S12, designed to switch high-power motors up to 500 A and 250 kW at...
VAT-exclusive price: 153.393,80 |
VAT-inclusive price: 184.072,56 |
The Siemens 3RT1076-6AP36 is a heavy-duty AC-3 motor contactor from the 3RT1 series, size S12, designed to switch high-power motors up to 500 A and 250 kW at 400 V AC. It features a universal control coil rated at 220–240 V AC/DC and is equipped with 3 NO main contacts and 2 NO + 2 NC auxiliary contacts. With screw terminals and robust industrial-grade construction, this contactor is ideal for reliable motor control in demanding applications.
| Product Specification | |
|---|---|
| Product Code | 3RT1076-6AP36 |
| Type | AC-3 Contactor |
| Series | 3RT1 |
| Size | S12 |
| Rated Current | 500 A |
| Power Rating | 250 kW (AC-3 / 400 V) |
| Control Voltage | 220–240 V AC/DC |
| Main Contacts | 3 NO |
| Auxiliary Contacts | 2 NO + 2 NC |
| Connection Type | Screw Terminals |
| Mounting | DIN Rail / Panel |
| Weight | 4.6 kg |
