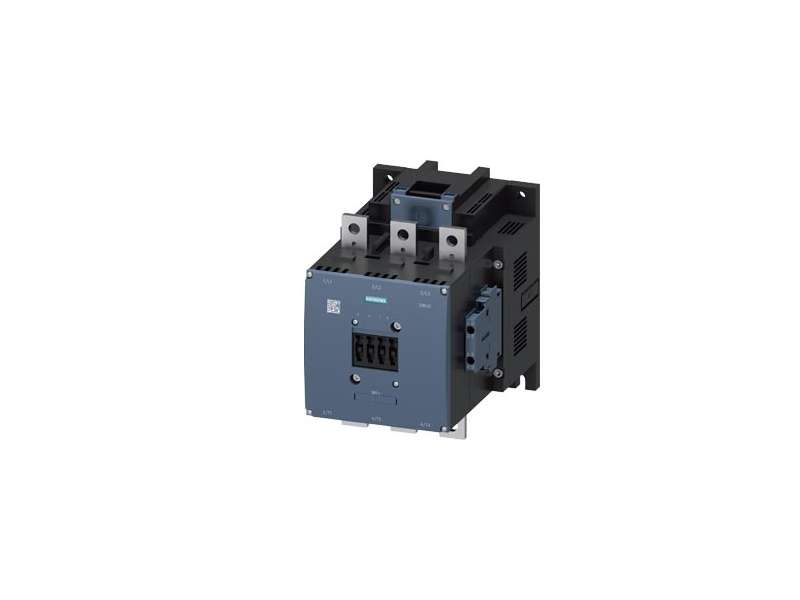

SIEMENS Kontaktor 3RT1076-2AV36
The Siemens 3RT1076-2AV36 is a high-performance AC-3 motor contactor from the 3RT1 series, size S12, designed for switching large motors up to 500 A and 250 kW...
VAT-exclusive price: 153.393,80 |
VAT-inclusive price: 184.072,56 |
The Siemens 3RT1076-2AV36 is a high-performance AC-3 motor contactor from the 3RT1 series, size S12, designed for switching large motors up to 500 A and 250 kW at 400 V AC. It features a universal control coil operating at 240–380 V AC/DC and comes equipped with 3 NO main contacts and 2 NO + 2 NC auxiliary contacts. With screw-type terminals and rugged construction, this contactor is ideal for heavy-duty industrial motor control applications.
| Product Specification | |
|---|---|
| Product Code | 3RT1076-2AV36 |
| Type | AC-3 Contactor |
| Series | 3RT1 |
| Size | S12 |
| Rated Current | 500 A |
| Power Rating | 250 kW (AC-3 / 400 V) |
| Control Voltage | 240–380 V AC/DC |
| Main Contacts | 3 NO |
| Auxiliary Contacts | 2 NO + 2 NC |
| Connection Type | Screw Terminals |
| Mounting | DIN Rail / Panel |
| Weight | 4.6 kg |
