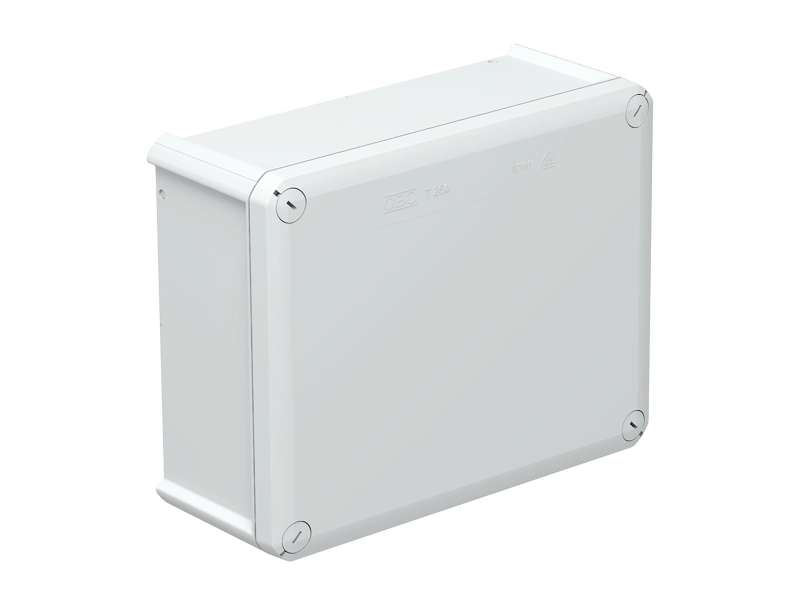

Obo Betterman Razvodna kutija, zatvorena, bez halogena, 240x190x95 mm, PP/GF | 2007287
Cable junction boxes are designed for secure connection of cables and conductors in indoor and protected environments. The rectangular closed design without entries...
VAT-exclusive price: 1.819,32 |
VAT-inclusive price: 2.183,18 |
Cable junction boxes are designed for secure connection of cables and conductors in indoor and protected environments. The rectangular closed design without entries enables wall, ceiling and mounting plate installation, as well as threaded mounting in the base. The quick-lock cover can be sealed. The enclosure is made of glass-fibre reinforced polypropylene, halogen-free and UV resistant. The product is self-extinguishing and impact resistant.
| Halogen-free | Yes |
| Color | Light grey; RAL 7035 |
| CO2 footprint (GWP) cradle-to-gate | 1.8041 kg CO2e / 1 piece |

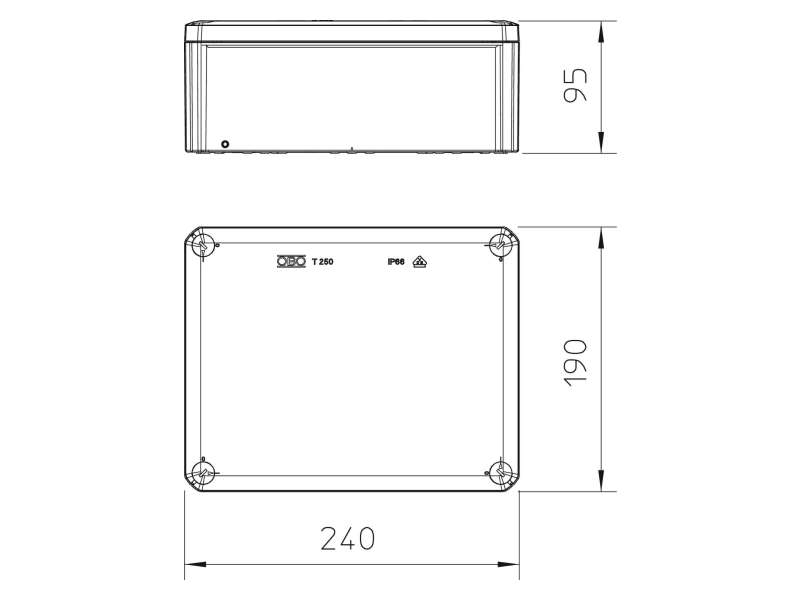

| Dimensions | 240x190x95 mm |
| Material | Glass fibre reinforced polypropylene |
| Sealable | Yes |
| Mounting method | Wall / ceiling mounting, mounting plate, threaded base |
| Rated voltage | 500 V |
| Minimum nominal cross-section | 25 mm² |
| Shape | Rectangular |
| Cover | Non-transparent, screw fastened |
| Rated insulation voltage Ui | 500 V |
| Self-extinguishing | According to VDE 0471 / DIN 695 part 2-1, test temp 750°C |
| Impact resistance | IK05 |
| Temperature range | -5°C to 60°C |
| Internal dimensions | 225x173x86 mm |
| Entry from rear side | Yes |
| Type of entries | None |
| Protection type | IP66 |
