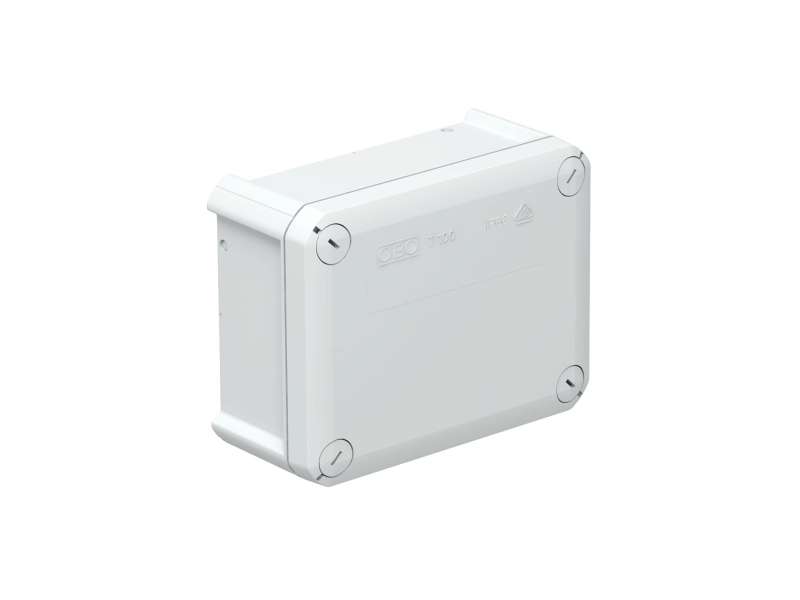

Obo Betterman Razvodna kutija, zatvorena, bez halogena, 150x116x67 mm | 2007255
Cable junction boxes enable secure connection of cables and conductors in indoor and protected environments. Rectangular closed design without entries allows easy...
VAT-exclusive price: 571,48 |
VAT-inclusive price: 685,78 |
Cable junction boxes enable secure connection of cables and conductors in indoor and protected environments. Rectangular closed design without entries allows easy wall, ceiling, or mounting plate installation. The cover features a quick lock and can be sealed. Made of halogen-free, UV-resistant material. Self-extinguishing according to DIN EN 60695-2-11 and impact resistant IK07.
| Halogen-free | Yes |
| Color | Light grey; RAL 7035 |
| CO2 footprint (GWP) cradle-to-gate | 0.6772 kg CO2e / 1 piece |

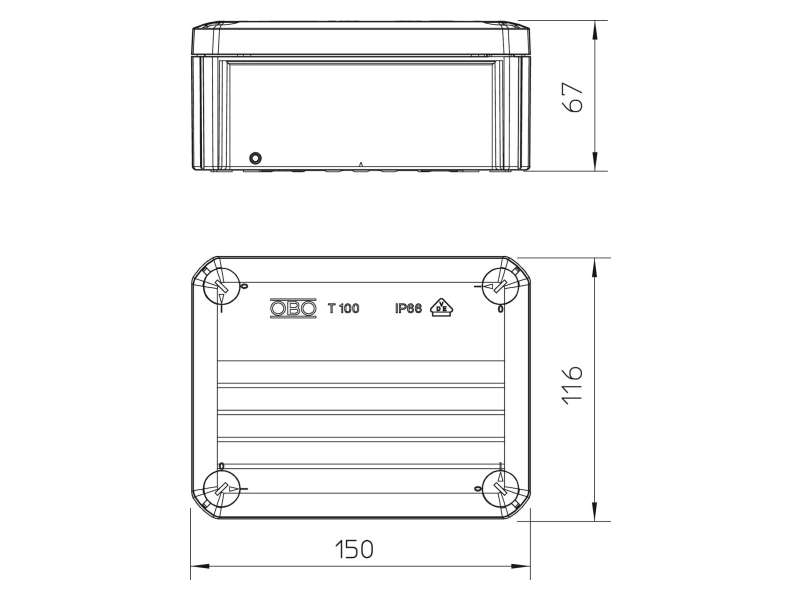

| Dimensions | 150x116x67 mm |
| Material | Polypropylene |
| Sealable | Yes |
| Mounting method | Wall / ceiling mounting, mounting plate |
| Rated voltage | 500 V |
| Minimum nominal cross-section | 10 mm² |
| Shape | Rectangular |
| Cover | Non-transparent, screw fastened |
| Rated insulation voltage Ui | 500 V |
| Self-extinguishing | According to VDE 0471 / DIN 695 part 2-1, test temp 750°C |
| Protection degree IK code | IK07 |
| Temperature range | -5°C to 60°C |
| Internal dimensions | 136x102x57 mm |
| Entry from rear side | Yes |
| Type of entries | None |
| Protection type | IP66 |
