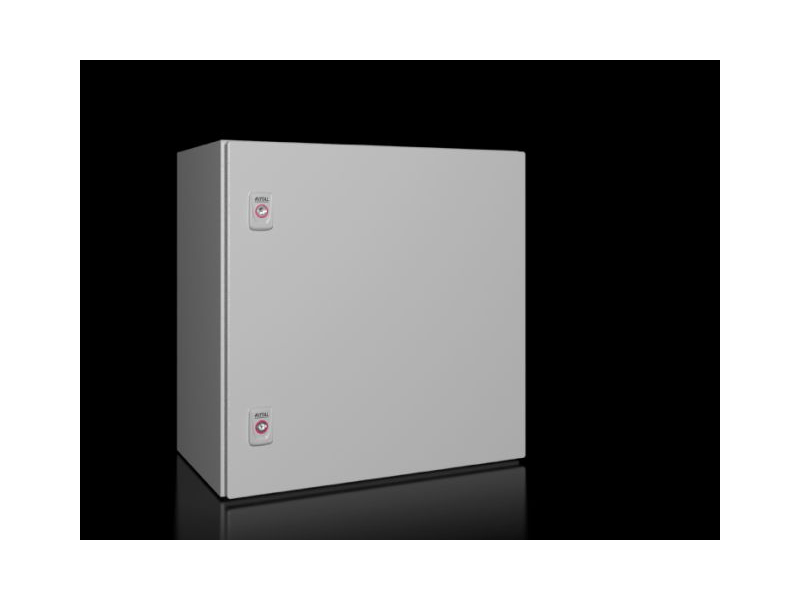

Rittal AX orman 500x500x300mm (ŠxVxD), Čelik, IP66, RAL7035 | 1350000
The Rittal AX compact enclosure 500x500x300 mm in steel, finished in RAL7035 with IP66 protection, integrates patented locators in the roof, base, and side. This...
VAT-exclusive price: 24.591,80 |
VAT-inclusive price: 29.510,15 |
The Rittal AX compact enclosure 500x500x300 mm in steel, finished in RAL7035 with IP66 protection, integrates patented locators in the roof, base, and side. This creates the familiar 25 mm system pitch pattern from the VX25 large enclosure. The innovative design ensures maximum flexibility, enabling quick, secure, and tool-free installation or retrofitting of system components and accessories on rails, without drilling.
| Attribute | Details |
|---|---|
| Benefits |
More interior installation options thanks to integral enclosure locators on a 25 mm system pitch pattern combined with the interior installation rail and diverse system accessories. Maintains protection category (UL approval) by mounting the interior installation rail with no drilling required. Base configuration rail provides additional mounting level and increased load capacity. Simple planning and configuration with the Rittal RiPanel configurator. |
| Material |
Enclosure: Sheet steel Door: Sheet steel, all-round foamed-in PU seal |
| Surface finish |
Enclosure and door: Dipcoat primed, powder-coated on the outside, textured paint Mounting plate: Zinc-plated |
| Colour | RAL 7035 |
| Supply includes |
Enclosure with door(s) Gland plate(s) in enclosure base Mounting plate Perforated door strip Lock: 3 mm double-bit |
| Protection category NEMA | NEMA 1, NEMA 3R, NEMA 4, NEMA 12 |
| Protection category to IEC 60 529 | IP 66 |
| Type rating to UL 50E | Type 1, Type 3R, Type 4, Type 12 |
| IK Code | IK10 |
| Dimensions |
Width: 500 mm Height: 500 mm Depth: 300 mm |
| Material thickness - door | 1,5 mm |
| Material thickness - enclosure | 1,5 mm |
| Material thickness of mounting plate | 2,5 mm |
| Dimensions mounting plate (W x H) | 450 mm x 475 mm |
| Number of doors | 1 |
| Interchangeable door hinge | Yes |
| Number of locks | 2 |
| Lock | Cam, 2 locks, 3 mm double-bit |
| Gland plate | Size: 6, Qty.: 1 |
| Basic material | Sheet steel |
| Packs of | 1 pc(s) |
| Net weight | 18,525 kg |
| Gross weight | 19 kg |
| PCF per pack (cradle-to-gate) | 74.4 kg CO2 eq (Cat B) |
| Customs tariff number | 94032080 |
| EAN | 4028177813281 |
| ETIM 9 | EC000261 |
| ETIM 8 | EC000261 |
| ECLASS 8.0 | 27180101 |
| Product description | AX Compact enclosure, WHD: 500x500x300 mm, sheet steel, with mounting plate, single-door, with two cam locks |
