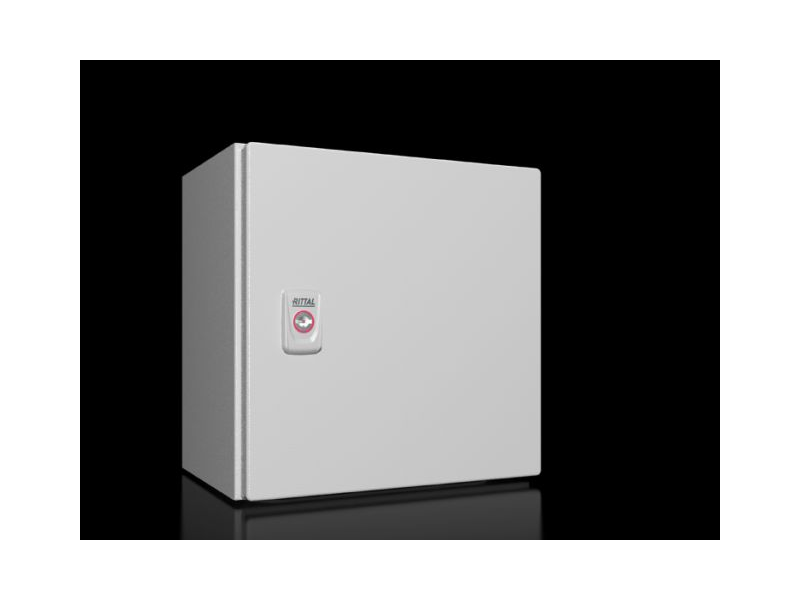

Rittal AX orman 760x760x300mm (ŠxVxD), Čelik, IP66, RAL7035 | 1073000
The AX compact enclosure (760x760x300mm, Steel, IP66, RAL7035) 1073000, features integral enclosure locators in the roof, base, and sides, following the 25 mm VX25...
VAT-exclusive price: 24.277,32 |
VAT-inclusive price: 29.132,79 |
The AX compact enclosure (760x760x300mm, Steel, IP66, RAL7035) 1073000, features integral enclosure locators in the roof, base, and sides, following the 25 mm VX25 system pitch. This patented design allows for all types of configurations and retrofits. Components and accessories can be quickly and securely installed on rails without drilling, ensuring a reliable and efficient installation suitable for industrial environments.
AX 1073000 Compact Enclosure
| Attribute | Details |
|---|---|
| Benefits | More interior installation options thanks to integral enclosure locators on a 25 mm system pitch pattern combined with the interior installation rail and our diverse range of system accessories. Maintains the protection category (UL approval) by mounting the interior installation rail with no drilling required. Base configuration rail provides additional mounting level and increased load capacity. Simple planning and configuration with the Rittal RiPanel configurator. |
| Material |
Enclosure: Sheet steel Door: Sheet steel, all-round foamed-in PU seal |
| Surface finish |
Enclosure and door: Dipcoat primed, powder-coated on the outside, textured paint Mounting plate: Zinc-plated |
| Colour | RAL 7035 |
| Supply includes |
Enclosure with door(s) Gland plate(s) in enclosure base Mounting plate Perforated door strip Lock: 3 mm double-bit |
| Protection category NEMA | NEMA 1, NEMA 3R, NEMA 4, NEMA 12 |
| Protection category to IEC 60 529 | IP 66 |
| Type rating to UL 50E | Type 1, Type 3R, Type 4, Type 12 |
| IK Code | IK10 |
| Dimensions (W x H x D) | 760 mm x 760 mm x 300 mm |
| Material thickness |
Door: 2 mm Enclosure: 1.5 mm Mounting plate: 2.5 mm |
| Dimensions mounting plate (W x H) | 705 mm x 735 mm |
| Number of doors | 1 |
| Interchangeable door hinge | Yes |
| Number of locks | 2 |
| Lock | Cam lock, 2 pieces, 3 mm double-bit |
| Gland plate | Size: 5, Qty: 2 |
| Basic material | Sheet steel |
| Packs of | 1 pc(s) |
| Net weight | 39.9 kg |
| Gross weight | 40.5 kg |
| PCF per pack (cradle-to-gate) | 133.4 kg CO2 eq (Cat B) |
| Note on PCF category | Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared |
| Customs tariff number | 94032080 |
| EAN | 4028177813267 |
| ETIM 9 | EC000261 |
| ETIM 8 | EC000261 |
| ECLASS 8.0 | 27180101 |

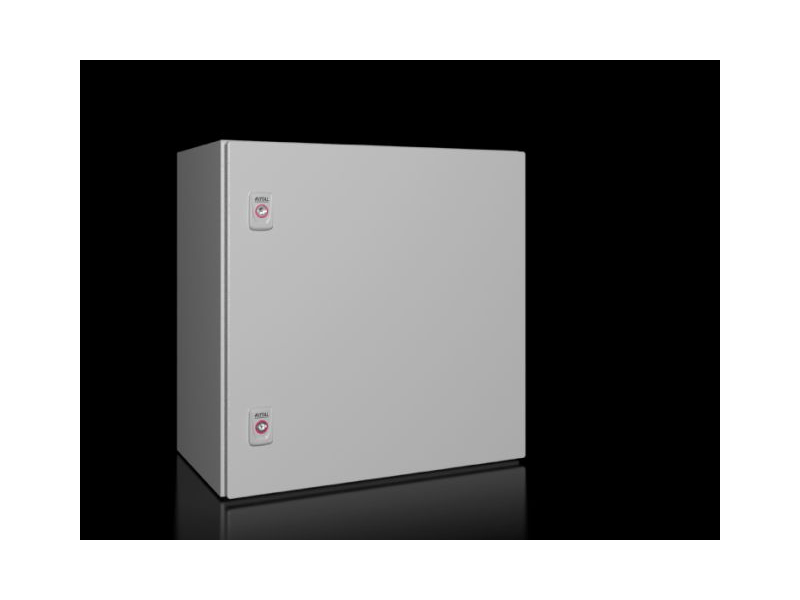

| Product description | AX Compact enclosure, WHD: 760x760x300 mm, sheet steel, with mounting plate, single-door, with two cam locks |
