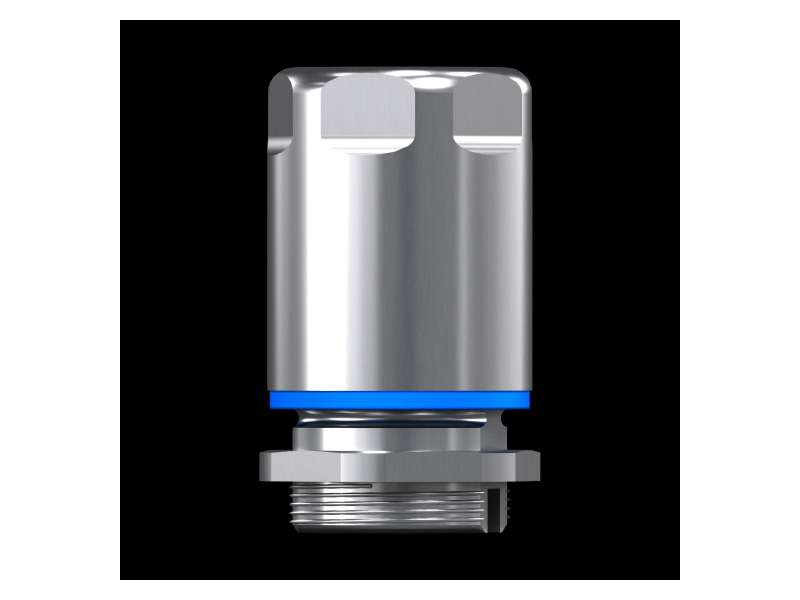

Rittal HD Uvodnica M12x1.5mm - Prohrom 2410001
The Rittal HD cable gland M12×1.5 mm is made from high-quality stainless steel, ensuring durability and resistance to corrosion. Designed for cables with diameters...
VAT-exclusive price: 18.237,46 |
VAT-inclusive price: 21.884,95 |
The Rittal HD cable gland M12×1.5 mm is made from high-quality stainless steel, ensuring durability and resistance to corrosion. Designed for cables with diameters from Ø3 to Ø6.5 mm, this gland offers a compact form and comes with a lock nut included. Supplied in packs of 5, it is the ideal solution for hygienic and industrial applications requiring secure cable entry.
HD 2410001 Cable Gland
| Article number | HD 2410.001 |
| Design | Standard |
| Benefits | Smooth, solid exterior surfaces effectively prevent the depositing of harmful micro-organisms. Much easier, and therefore cheaper to clean compared with conventional cable glands. |
| Applications | Clean room technology (e.g. pharmaceuticals), Biotechnology, Chemical industry |
| Material - Nut | Stainless steel 1.4305 (AISI 303) |
| Material - Seal | EPDM, compliant with FDA 21 CFR 177.2600 |
| Supply includes | Lock nut |
| Dimensions - Thread | M12 x 1.5 |
| For cable diameters | 3 – 6.5 mm |
| Operating temperature range | -20 °C...100 °C |
| IP protection category (IEC 60529) | IP69 / IPX8 (5 bar, 30 min) |
| Packs of | 5 pc(s) |
| Net weight | 0.095 kg |
| Gross weight | 0.134 kg |
| Customs tariff number | 73072980 |
| EAN | 4028177928640 |
| ETIM 9 | EC000441 |
| ETIM 8 | EC000441 |
| ECLASS 8.0 | 27149109 |
| Product description | HD Cable gland, stainless steel 1.4305, size: M12x1.5, for cables Ø 3-6.5 mm, Standard version |
