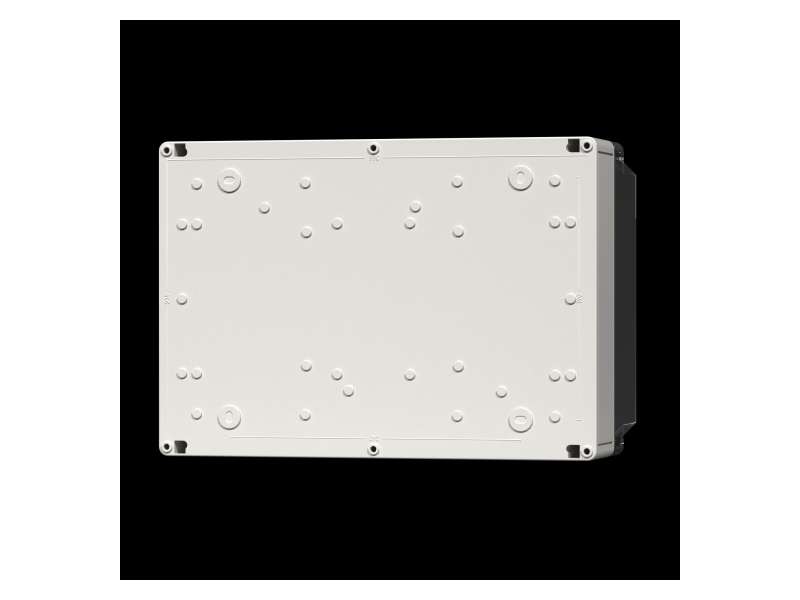

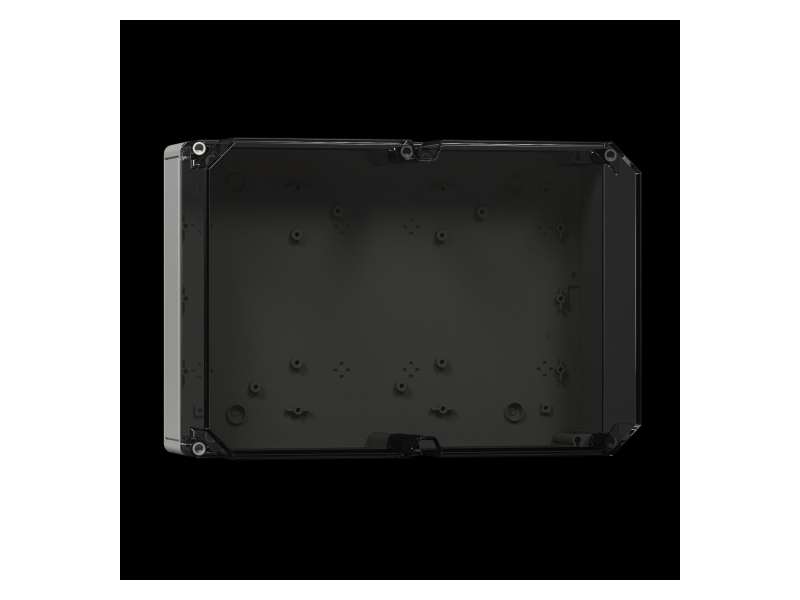

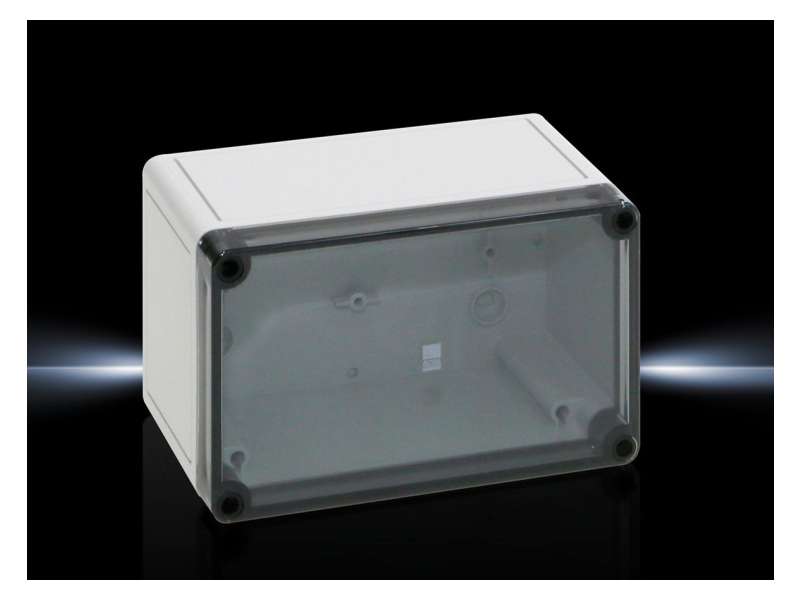

Rittal PK kutija 180x110x90mm (ŠxVxD), Polikarbonat, IP66, RAL7035, Prozi. pok | 9514100
PK 9514100 – Wall-mounted enclosure made of fibreglass-reinforced polycarbonate, with transparent cover featuring quick-release fasteners for easy maintenance....
VAT-exclusive price: 6.523,78 |
VAT-inclusive price: 7.828,54 |
PK 9514100 – Wall-mounted enclosure made of fibreglass-reinforced polycarbonate, with transparent cover featuring quick-release fasteners for easy maintenance. Insulating bungs included for wall mounting screws. Operating temperature range: -35 °C to +80 °C. Protection category IP66 (IEC 60529), NEMA 4X. Dimensions: 180x110x90 mm.
| Product description | Wall-mounted enclosure made of fibreglass-reinforced polycarbonate with transparent cover and quick-release fasteners. |
|---|---|
| Material | Enclosure: Fibreglass-reinforced polycarbonate; Cover: Polycarbonate with PU seal; Cover screws: Polyamide; Insulating bungs: Polyethylene |
| Colour | RAL 7035 |
| Protection category | IP66 (IEC 60529), NEMA 4X |
| Dimensions (W x H x D) | 180 x 110 x 90 mm |
| Operating temperature | -35 °C ... +80 °C |
| Packs of | 2 pc(s) |
| Net weight | 0,756 kg |
| Gross weight | 0,856 kg |
| Customs tariff number | 94037000 |
| EAN | 4028177139510 |
| ETIM 9 | EC000261 |
| ECLASS 8.0 | 27180101 |
