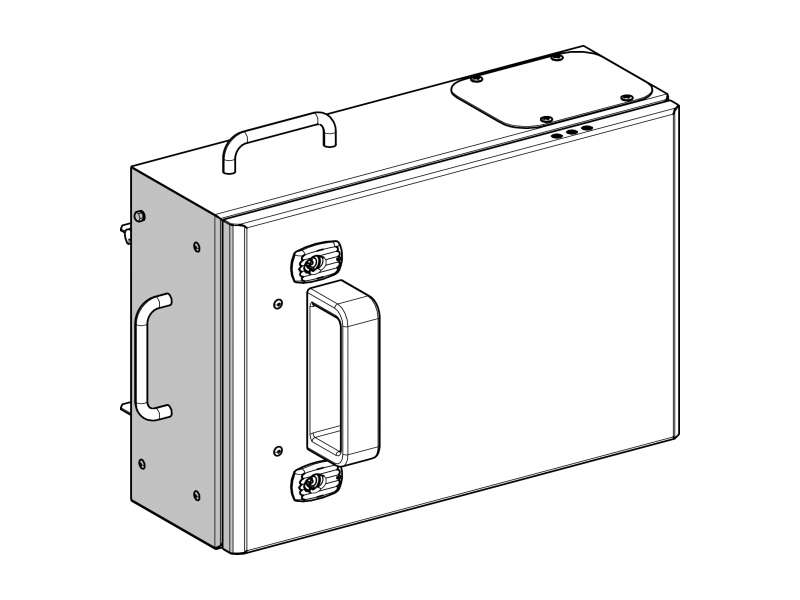

Schneider Electric Canalis - utična kutija za BS88 osigurač-B1 ili B2 - 160A sa izolatorom-3L+N+PE
TAP OFF UNIT 160A FUSE BS88...
VAT-exclusive price: 81.932,00 |
VAT-inclusive price: 98.318,40 |
TAP OFF UNIT 160A FUSE BS88
| range of product | Canalis |
|---|---|
| range compatibility |
KT busbar trunking KS busbar trunking |
| product or component type | Tap-off unit |
| busbar trunking compatibility |
Canalis KS busbar trunkingplug-in Canalis KT busbar trunking with KS type plug-in |
| [Ie] rated operational current | 160 A at 35 °C |
| protection type |
Fuse isolator: BS88 fuse, size B1 conforming to BS fuse isolator: BS88 fuse, size B2 conforming to BS |
| provided equipment | Fuse to be ordered separately |
| mounting mode | Plug-in with fixed polarity |
| tap-off unit polarity | 3L+N+PE |
| colour | White (RAL 9001) |
| device application | Medium power distribution |
|---|---|
| [Ue] rated operational voltage | 230...690 V depending on protective device |
| [Uimp] rated impulse withstand voltage | 6.8 kV |
| [Ui] rated insulation voltage | 690 V depending on protective device |
| network frequency | 50/60 Hz |
| electrical connection |
Copper cable lug - ISO25 50 mm² flexible Copper cable lug - ISO25 50 mm² rigid |
| door/cover opening side | Right |
| tap-off unit disconnection mode | By opening the door |
| standards |
IEC 61439-1 IEC 61439-6 |
| body material | Metal |
| width | 482 mm |
| depth | 207 mm |
| depth (door open) | 577.5 mm |
| height | 332 mm |
| net weight | 11 kg |
| earthing system |
TT TN-S IT |
|---|---|
| IP degree of protection | IP55 conforming to IEC 60529 |
| IK degree of protection | IK08 conforming to IEC 62262 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 9.858 kg |
| Package 1 Height | 29.5 cm |
| Package 1 width | 33.5 cm |
| Package 1 Length | 50.5 cm |
| Sustainable offer status | Green Premium product |
|---|---|
| REACh Regulation | REACh Declaration |
| EU RoHS Directive |
Compliant
EU RoHS Declaration |
| Mercury free | Yes |
| RoHS exemption information | Yes |
| China RoHS Regulation |
China RoHS declaration
Product out of China RoHS scope. Substance declaration for your information
|
| Environmental Disclosure | Product Environmental Profile |
| WEEE | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins |
| Warranty | 18 months |
|---|
-
Canalis KS KSB160SG4
